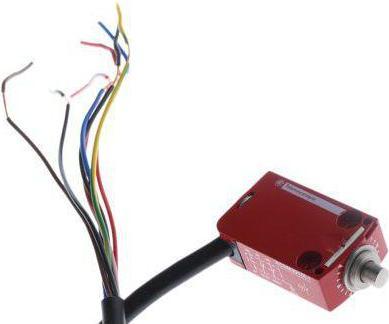

TE Sensors Safety limit switch with steel plunger

Actuator type: Plunger
Actuator included: Yes
Contact configuration: Normally closed/2 normally open
Switching function: Snap action
Connection type: Cable
Housing material: Zamak
Number of contacts: 3
Contact number and position: 3-pole
Series: XCSM
Dimensions: 60 x 30 x 16 mm

UL, CSA. CSA C22.2 No. 14, EN 1088, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508. With the appropriate monitoring system and correct wiring, these switches can achieve safety category 4 according to EN/ISO 13849-1, PL e according to EN/ISO 13849-1, and SIL 3 according to EN/IEC 61508. Safety limit switches series XCSM. The industrial compact miniature limit switches of the XCSM series from Schneider are designed for monitoring access doors and/or safety devices on machines with low inertia as well as on machines with high inertia when used in combination with actuator-operated safety device switches. When used independently, they are always installed in the positive mode, but when paired, one switch is installed in the positive mode and the other switch in the negative mode. Available with switch for linear movement (plunger) or rotary movement (lever). Normally open contacts with forced opening, snap contacts. Compact miniature housing made of red metal, pre-wired, plastic protective cover secured by a 5-sided safety screw with socket attachment. The head on the rotary movement switch (lever) is adjustable in 15° increments over 360°. Linear movement switches (plunger) only with approach to the end. Protection class IP66/67 according to EN/IEC 60529. Complies with ROHS.
