Product details
Actuator type: Lever
Contact number and position: 2 pole
Contact configuration: 2 changeover contacts
Protection class: IP65
Current max: 3 A
Housing material: Zinc alloy
AC voltage max: 240V
DC voltage max: 250V
Series: OsiSense XC
Contact type: Snap action
Connection type: Screw mounting
Length: 95mm
Width: 85mm
Dimensions: 95 x 85 x 53 mm

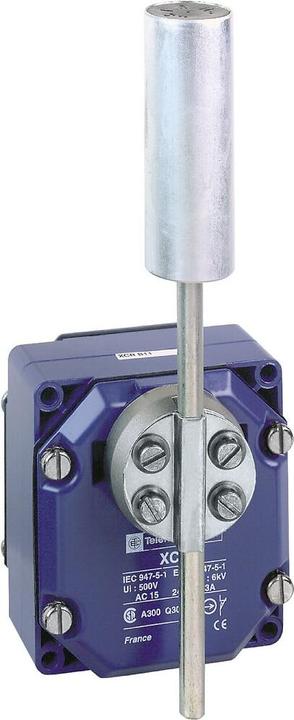

Osiswitch Classic limit switches are designed for lifting, mechanical handling, and conveyor belt monitoring applications. Type XCR is for lifting and mechanical handling, while Type XCR T is for conveyor belt monitoring, featuring one cable entry (DIN 13.5).
