Swisshandel24 Shower Channel 100cm Floor Drain Drain Shower Drain, Stainless Steel Siphon 50-120cm

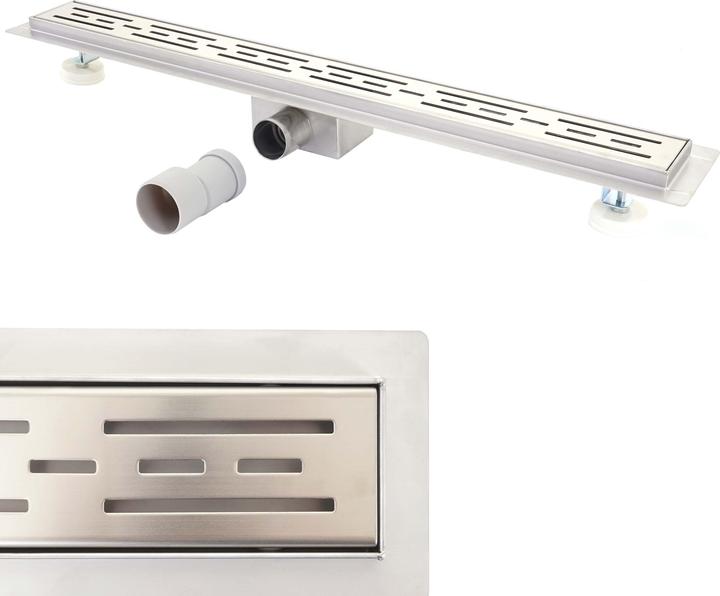

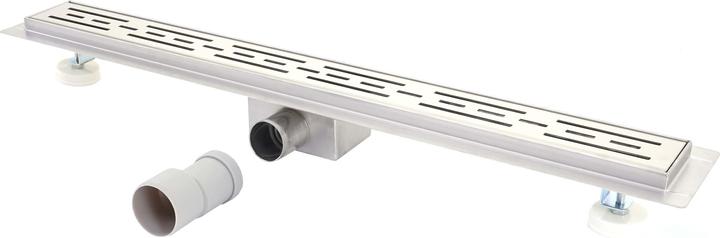

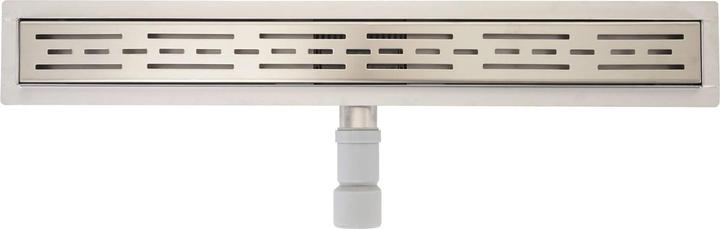

Stainless Steel Shower Drain

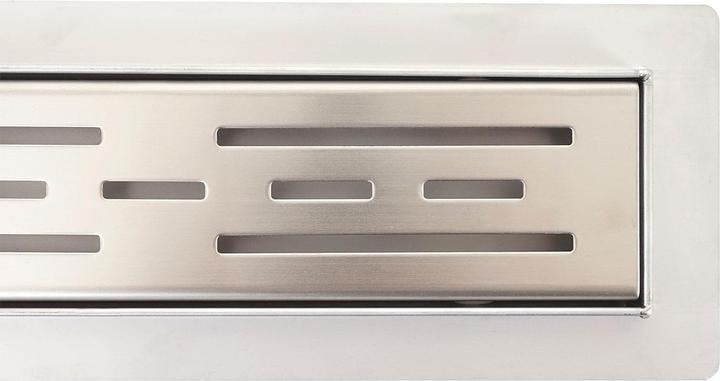

• Interchangeable cover
• Removable grate for easy cleaning
• Designed for installation in a walk-in shower
• Removable lint trap
• Adjustable feet for different installation heights
• Siphon connection height: 40 mm - 50 mm
• Siphon drainage capacity: 30 l/min
• Load capacity: approx. 200 kg
• Floor drain with odor trap

Dimensions (approx.):
Length including tile flange: 1040 mm
Length excluding tile flange: 1000 mm
Width including tile flange: 110 mm
Width excluding tile flange: 70 mm
Edge width: 20 mm
Height adjustable: 70-90 mm

Is quality in the shower area important to you? Then this stainless steel shower drain is just right for you. With various covers and adjustable feet, you can customize your shower drain according to your preferences. Easy cleaning is ensured by the removable lint trap and the detachable grate. The siphon is also removable, and with a drainage capacity of 30 l/min, water accumulation is prevented.

Even though we are confident in your craftsmanship skills, this item should only be installed by professionals (tiling specialists). Proper sealing can only be performed by trained professionals and is essential. This is the only way to prevent water from seeping into the floor structure. Water stains on the ceiling below, mold growth, or tiles loosening from the adhesive would be the consequences of inadequate sealing. No warranty or liability can be accepted for damages caused by improper installation.

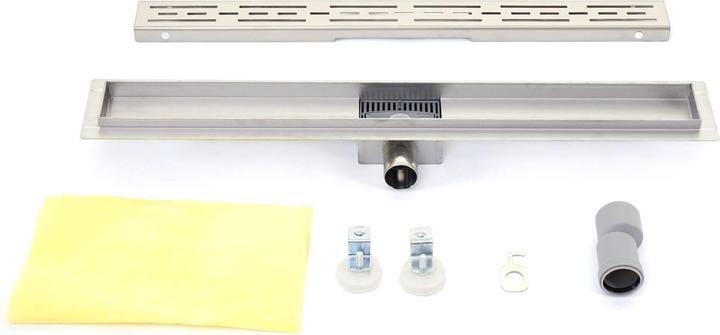

Scope of delivery:
1x Stainless Steel Shower Drain SUS304
2x Height-adjustable feet
1x Removable siphon
1x Waterproof cloth
1x Removable screen
1x Lifting hook
1x Installation manual in DE, FR, EN, IT.
