Stahlwille Torque spanner 730/40 Fix 80 - 400 Nm 14 x 18 mm
80 Nm, 400 NmMore than 10 pieces in stock at supplier
Product details
With a socket for insert tools for controlled right and left tightening. Triggering for work in series production. The adjustment knob can be unscrewed after setting the release torque to prevent unintentional changes to the target torque. The included locking screw protects against tampering, as do the included adhesive seals. Adjustment without breaking the seal is not possible. The QuickRelease safety lock allows for quick, precise adjustments through QuickSelect quick adjustment. Double stop signal and very clearly readable double scale with color differentiation of N.m/ft·lb and ft·lb/in·lb. Left tightening by reversing the insert tools. Two-component handle, resistant to oils, fats, fuels, brake fluids, and Skydrol. Accuracy ± 3% tolerance from the set value. Special feature: no reset to "0" required, as the measuring element is only loaded during the tightening process. Further loading after triggering or loads against the functional direction, e.g., with stuck screws, do not affect the release mechanism, which is thus protected from damage. Additional technical specifications: Certificate: yes, subject to testing: yes. Includes calibration certificate according to DIN EN ISO 6789-2:2017 and operating instructions. Delivered in a plastic case.
Torque wrench Version | Rectangular holder |
Item number | 22168518 |
Manufacturer | Stahlwille |
Category | Torque wrenches |
Manufacturer no. | 96503040 |
Release date | 13.9.2022 |
Torque wrench Version | Rectangular holder |
Max. torque | 400 Nm |
Min. torque | 80 Nm |
Tightening direction | On both sides |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Without insertion tool (basic model) |

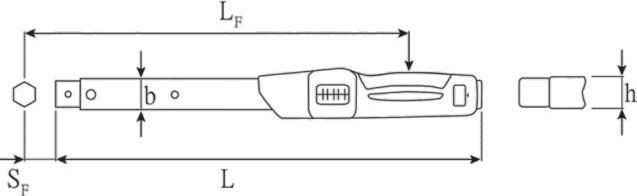

Length | 607 mm |
Width | 95 mm |
Height | 75 mm |
Weight | 1655 g |
