Name: 8102/22-32
Brand: Stahl
SKU: 32309739
Price: 82.9 CHF
Availability: InStock

productDetailPageQuery

Stahl

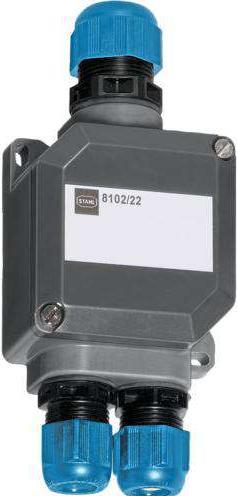

Steel junction box Ex i 8102/22-32
Manufacturer: Steel
Designation: Junction box Ex i
Type: 8102/22-32
Number of terminals: 5
Max. conductor cross-section: 2.5 mm²

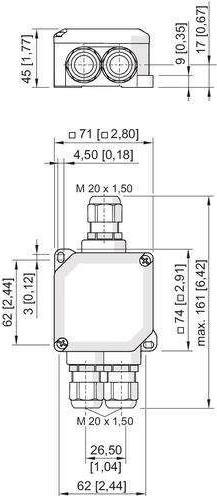

Length: 161 mm
Width: 71 mm
Depth: 45 mm
Mounting type: Surface-mounting: No
Number of entries: 3
Type of entry: Screw connection
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour: Grey
Protection class (IP): IP66
Protection class (NEMA): 4X
With cover: Yes
Cover fixing: Screwed
With transparent cover: No
Sealable: No
Rated insulation voltage Ui: 60 V
Functional integrity: Without
Operating temperature: -40 to 70 °C
Impact resistance: IK10
Explosion-tested version: Yes
For Ex zone gas: 1, 2
For Ex zone dust: 21, 22

Steel junction box Ex i 8102/22-32: Further details
The junction boxes of the 8102 series from R. STAHL are small Ex e enclosures for conducting and distributing electrical energy in hazardous areas. They are made of glass-fibre reinforced polyester resin and are therefore extremely robust. The junction box has 5 sheath terminals, one of which is used as a PE connection point. The clamping range of the sheath terminals is 2 x 4 mm². Junction box Ex i, explosion-proof, type: 8102/22-32, rated operational voltage AC: 60 V, rated operational current, connection cross-section: 2.5 mm², enclosure material: Polyester resin, glass fibre reinforced, enclosure colour: Dark grey, dimensions (W x H x D): 71 x 161 x 45 mm, application range (zones): 1, 2, 21, 22, gas explosion protection: II 2 G Ex ia ib IIC T6 Gb, dust explosion protection: II 2 D Ex tb IIIC T80 °C Db, ambient temperature °C: -40 to +70 °C, Silicone-free: No, 5 ST sheath terminal 4 mm², 3 ST 8161/8-M20-1304. EAN: 4046827070716.
