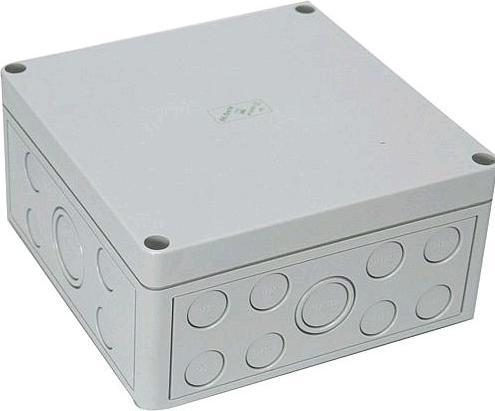

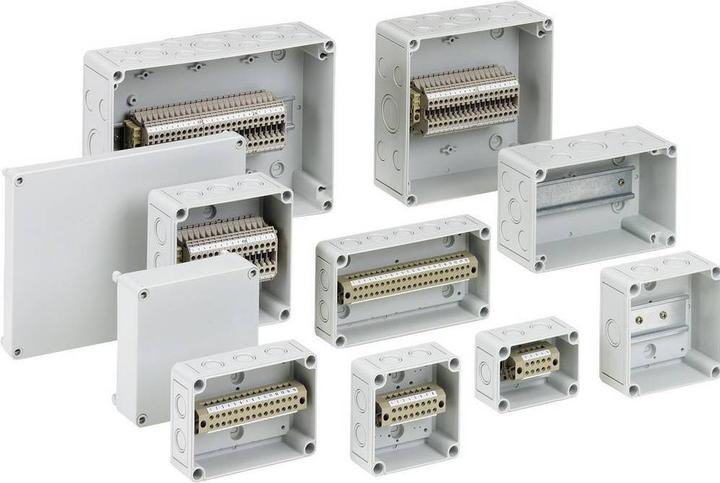

The RK series terminal block enclosure has a high protection rating of IP 54 to IP 66. The standard equipment includes IP 54 mounting sockets and a 35 x 7.5 mm mounting rail for individual configuration. It features wall mounting options on the bottom of the box (alternatively below the cover screws) and metric pre-formed knockouts. No additional drilling or milling is required - simply knock out the openings with a screwdriver and install the included IP 54 mounting sockets. The cover, made of impact-resistant polystyrene, is standardly sealable. To achieve a higher protection rating (up to IP 66), it is sufficient to replace the mounting sockets with cable glands. The enclosure material is halogen-free and has the UL "Yellow Card.".
Junction box type | Junction box |
Height | 90 mm |
Width | 180 mm |
Protection type (IP code) | IP66 |
Length | 182 mm |
Item number | 14527830 |
Manufacturer | Spelsberg |
Category | Junction box |
Manufacturer no. | 61691201 |
Release date | 28.12.2020 |
Sales rank in Category Junction box | 24 of 3290 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
Junction box type | Junction box |
mounting style | Adhesive, Duvet |
Area of use | Inside |
Protection type (IP code) | IP66 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Height | 90 mm |
Width | 180 mm |
Length | 182 mm |
Diameter | 180 mm |
