Spelsberg Junction box

2Ratings
BrandMore from Spelsberg
Currently out of stock
Free shipping starting at 50.–

Product details

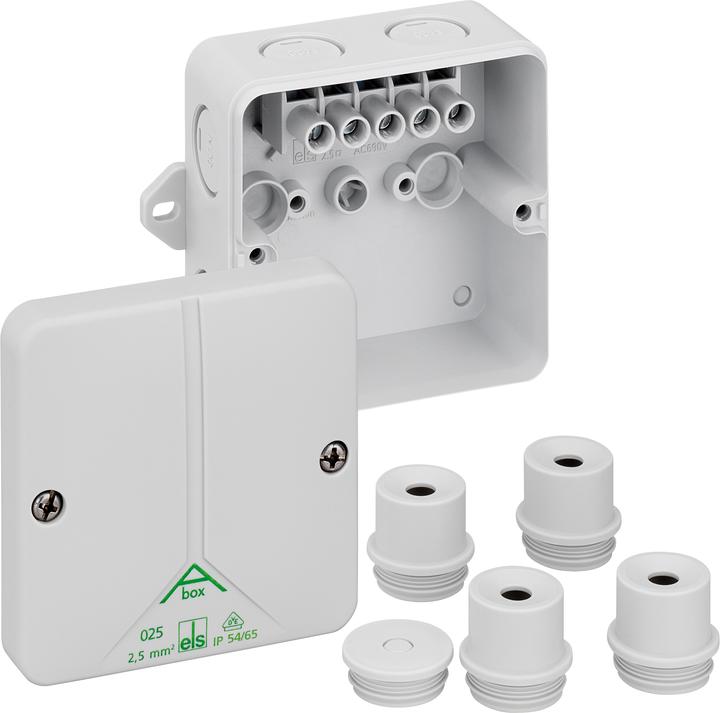

Spelsberg junction box Abox m 025 AB-2,5

Manufacturer: Spelsberg
Designation: Junction box
Type: Abox m 025 AB-2,5
Max. conductor cross-section: 2.5 mm²
Fitting: Terminal
Shape: Rectangular
Mounting type: Wall/ceiling mounting
Mounting in the ground: No
Mounting under water: No
Entry from the rear: Yes
Length: 82 mm
Width: 82 mm
Depth: 52 mm
Bayable: No
Number of entries: 8
Type of housing entry: Pre-stamping
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Colour: Grey
Protection class (IP): IP65
Cover version: Other
Transparent cover: No
Cover fixing: Screwed
Pourable: Yes
Supplied with potting compound: No
Sealable: Yes
Rated insulation voltage Ui: 690 V
Functional integrity: Without
With shielding: No
Weatherproof: No
Operating temperature: -25 to 40 °C
Explosion-proof version: No
For Ex-zone gas: Without
For Ex-zone dust: Without

Further details: Junction box with protection class IP54/IP65, nominal cross-section 2.5 mm², Ui=690 V AC, certified according to VDE (DIN EN 60670-1/-22), knock-out membranes M20 (1 on the back, 7 on the side), for explosion protection, external fixing points for standard indoor installations, grey, with screw terminal, 5-pole 2.5 mm² (4 x 1.5 mm² / 4 x 2.5 mm²). Dimensions: 82 x 82 x 52 mm. Included accessories: 4 mounting sleeves IP54 M20 sealing range 8-13.5 mm, 1 sealing plug M20.

Key specifications

Junction box type
Junction box
Protection type (IP code)
IP54, IP65
Height
52 mm
Width
82 mm
Length
82 mm

General information

Item number
33793367
Manufacturer
Spelsberg
Category
Junction box
Manufacturer no.
80840701
Release date
17.5.2023

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Junction Box Features

Junction box type
Junction box
mounting style
Adhesive, Duvet
Area of use
Inside

Safety

Protection type (IP code)
IP54, IP65

Origin

Country of origin
Germany

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Height
52 mm
Width
82 mm
Length
82 mm
