SKF Single action thrust ball bearings
Delivered Tue, 3.6.
Only 2 items in stock at third-party supplier
Only 2 items in stock at third-party supplier
Supplied by
Product details

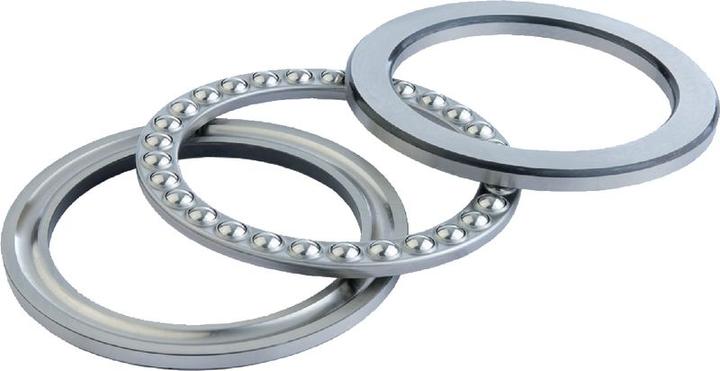

SKF axial deep groove ball bearing, single acting, 51204, 20 x 40 x 14

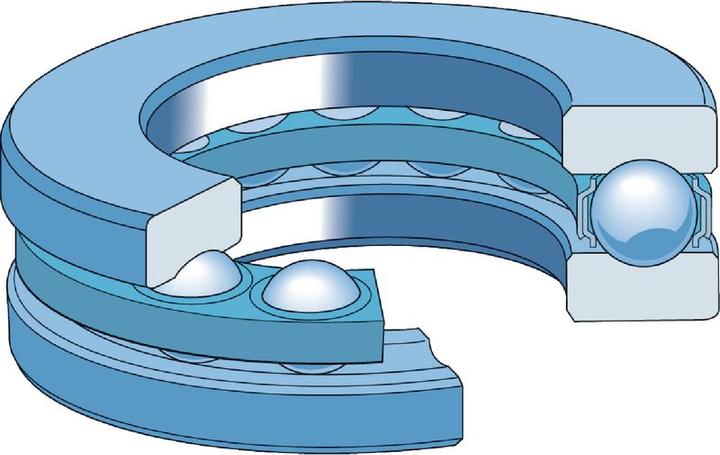

Bearing series 511, 512. Single acting axial deep groove ball bearings are suitable for accommodating axial loads in one direction and can support the shaft on one side, but should not be subjected to radial loads. They consist of a shaft washer, a housing washer, and a ball set held by a cage. Due to their design, the bearings are not self-retaining, allowing for separate installation of the bearing components, making it straightforward. Cage made of steel sheet. Main dimensions according to DIN 616:2000 / ISO 104:2002.
Ball bearing type | Deep groove ball bearing |
Outside diameter | 40 mm |
Internal diameter | 20 mm |
Width | 48 mm |
Item number | 9984377 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer no. | 51204 7316577058539 |
Release date | 24.10.2018 |
Material group | Metal |
Material | Standard rolling bearing steel |
Ball bearing type | Deep groove ball bearing |
Load rating dyn. | 22.50 kN |
Load rating stat. | 40.50 kN |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Axial deep groove ball bearing 51204 Inner Ø 20 mm Outer Ø 40 mm Width 14 mm |
Outside diameter | 40 mm |
Internal diameter | 20 mm |
Width | 48 mm |
Weight | 83 g |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
3 additional offers
