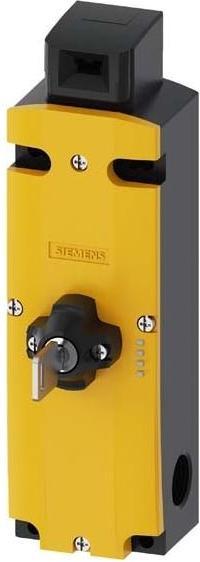

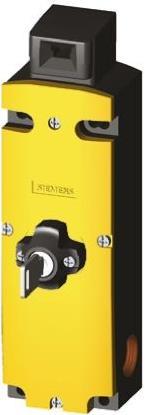

Siemens Solenoid switch, additional release, 24VDC

Safety position switch with holding mechanism, holding force 1300 N, 5 actuation directions, spring force locked, auxiliary release with lock, magnet voltage DC 24 V, actuator monitoring 2Ö/1S, magnet monitoring 2Ö/1S, LED display yellow/green. Delivery without actuator. Actuator 3SE5000-0AV0 must be ordered separately. Mechanical safety switches SIRIUS 3SE5 for position monitoring of movable protective devices. They ensure that protective doors, covers, or safety flaps/grids remain closed as long as a hazardous condition exists. The drive heads in screwless mounting can be rotated 4x90 degrees. There are 5 actuation directions possible for the actuator, one of which is end-side. The switching elements ensure very high contact reliability and can only be operated with separately coded actuators, which provide increased tamper protection. LEDs conveniently display the current status of the device. The devices are globally approved (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The devices are available with spring or magnetic locking, in plastic with a holding force of 1300 N or metal with a holding force of 2300 N. A wide range of 3D coded actuators can be ordered. Some variants are optionally available with LED status indication. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. The actuator is not included in the delivery of the safety switches and must be ordered separately. Depending on the version, plugs and other connection accessories are available as accessories. Safety is a SIRIUS business.
