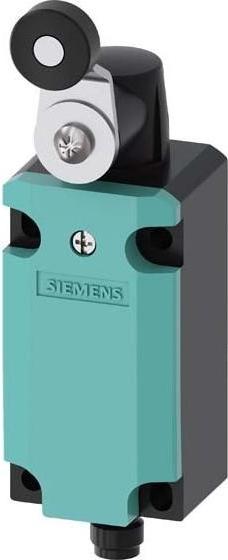

Siemens Single position switch 1S 1NC 1W metal 3SE5114-0CH01-1AC5

Position switch with metal housing, 40 mm according to DIN EN 50041, 1S/1Ö snap contacts with M12 connector, 5-pole, fixed pin assignment: PIN1=21, PIN2=22, PIN3=13, PIN4=14, PIN5=PE. Swivel drive adjustable to the right and/or left, metal lever 27 mm long and plastic roller 19 mm. Mechanical position switches SIRIUS 3SE5 for position and orientation detection of machine parts and monitoring of safety devices. The modular design of the 3SE5 position switches allows for a wide variety of configurations with a small number of stock types. The large variety of connectors and rollers meets almost all requirements in everyday industrial use. LEDs indicate the current status of the device. Thanks to quick connection technology, connection times can be significantly reduced. Switching points and mounting according to EN 50047 and EN 50041. The devices are globally approved (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The integrated ASIsafe electronics require low power consumption. Various housing sizes are available, with different switching elements, in plastic or metal or compact design. Some variants are optionally available with LED status indicator and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Depending on the version, drive heads and connectors as well as additional mounting and connection accessories are available as accessories. Safety is a SIRIUS business.
