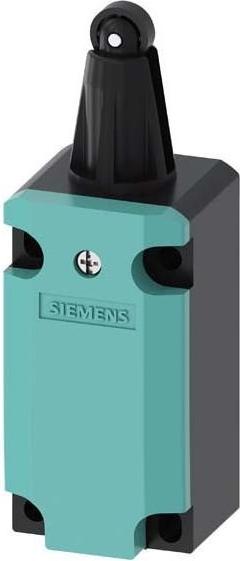

Siemens Single position switch 1S 1NC 1W Kst 3SE5132-0BD05

Position switch with plastic housing, 40 mm according to DIN EN 50041, device connection 1x (M20 x 1.5), 1S/1Ö, slow contacts, roller plunger with plastic roller, 13 mm. Mechanical position switches SIRIUS 3SE5 for the detection of positions and orientations of machine components as well as for monitoring the position of safety devices. The modular design of the 3SE5 position switches allows for a wide variety of configurations with a small number of housing types. The extensive variety of connectors and rollers meets nearly all requirements in industrial everyday life. LEDs indicate the current status of the device. Thanks to quick connection technology, connection times can be significantly reduced. Switching points and mounting according to EN 50047 and EN 50041. The devices are globally approved (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The integrated ASIsafe electronics require low power consumption. Various housing sizes with different switching elements in plastic or metal, or in compact design, are available. Some variants are optionally available with LED status display and M12 connector. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio. Accessories such as drive heads and connectors, as well as additional mounting and connection accessories, are available depending on the version. Safety is a SIRIUS business.
