Siemens SIEM RCD circuit breaker

Ratings
BrandMore from Siemens
Delivered between Thu, 30.7. and Thu, 13.8.
1 item ordered
free shipping

Rated current2

Product details

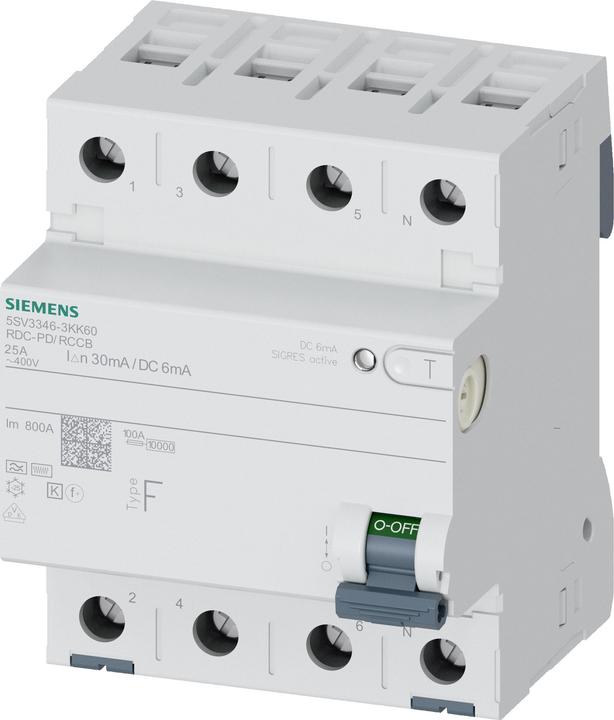

Siemens Digital Industry RCD 4-pole 5SV3346-3KK60

Manufacturer: Siemens Digital Industry
Designation: 4-pole RCD Type F
Type: 5SV3346-3KK60
Number of Poles: 4
Rated Voltage: 400 V
Rated Current: 63 A
Rated Residual Current: 0.03 A
Mounting Type: DIN Rail
Residual Current Type: F
Selective Type: No
Time-delayed Type: Yes
Short-Circuit Strength (Icw): 10 kA
Surge Current Strength: 3 kA
Voltage Type: AC
With Locking Mechanism: Yes
Frequency: 50/60 Hz
Additional Devices Possible: Yes
Protection Class (IP): IP20
Width in Division Units: 4
Installation Depth: 70 mm
Ambient Temperature During Operation: -25..45 °C
Connectable Conductor Cross-Section Multistranded: 0.75..35 mm²
Connectable Conductor Cross-Section Solid: 0.75..35 mm²
Explosion-Proof: No

The SENTRON 5SV3 RCD provides comprehensive protection for people and property against electric shock. The RCDs ensure reliable safety during installation due to the standard integrated gripping and touch protection. With the convenient slider manual operation, you can easily detach the RCDs from the DIN rail or busbar connection without tools. The data matrix code on the device provides quick access to all technical data in the Siemens Industry Online Support App. SENTRON protective devices can be expanded with a wide range of functions using the continuous accessories from the system modular kit. Optimal technology for your safety - exclusively from Siemens.
EAN: 4001869601052.

Key specifications

Mounting type
Top-hat rail
number of poles
4
Length
70 mm
Width
70 mm

General information

Item number
33686688
Manufacturer
Siemens
Category
Residual-current device
Manufacturer No.
5SV33463KK60
Release date
17.5.2023

Colour

Exact colour description
N.a.

Circuit Breaker Features

Mounting type
Top-hat rail
number of poles
4
Rated current
63 A
Rated voltage
400 V
voltage type
AC
Insulation voltage (Ui)
400 V
Residual current
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
70 mm
Height
70 mm
