Siemens SIEM contactor

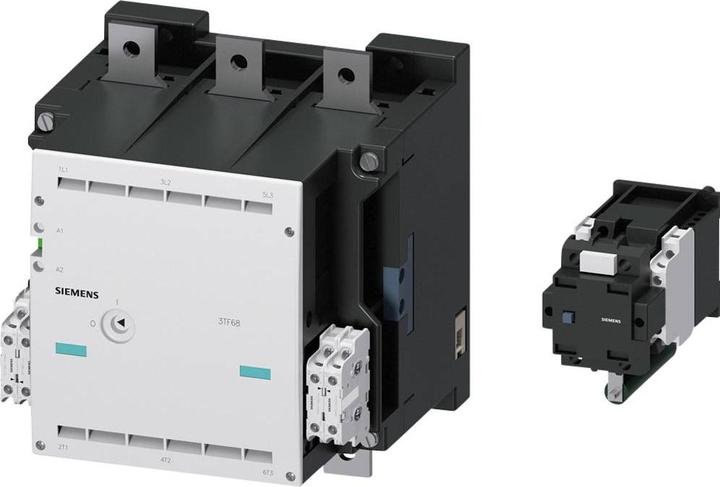

Siemens Digital Industry Contactor 3TF6833-8DF4

Manufacturer: Siemens Digital Industry
Designation: Contactor 335 kW 400/380 V
Type: 3TF6833-8DF4
Rated control supply voltage Us at DC: 110 V
Voltage type for actuation: DC
Rated operational current Ie at AC-1, 400 V: 700 A
Rated operational current Ie at AC-3, 400 V: 630 A
Rated operational power at AC-3, 400 V: 335 kW
Rated operational current Ie at AC-4, 400 V: 610 A
Rated operational power at AC-4, 400 V: 168 kW
Rated operational power NEMA: 389.81433749 kW
Suitable for rail mounting: yes
Number of auxiliary contacts as normally closed: 3
Number of auxiliary contacts as normally open: 3
Connection type main circuit: Rail connection
Number of normally closed contacts as main contacts: 3

Siemens Digital Industry Contactor 3TF6833-8DF4: additional details
Contactor, size 14, 3-pole, AC-3, 335 kW, 400/380 V (1000 V)
Auxiliary switch 33 (3NO+3NC) with changeover contactor 3TC4417-4A and series resistor DC-saving circuit DC 110 V

Vacuum contactor 3TF6 for switching motors. The 3TF6 vacuum contactors impress with high performance while maintaining a compact design and high contact reliability. They also feature an exceptionally long switching lifespan, making them particularly suitable for frequent switching in momentary operation. Pre-assembled auxiliary switches reduce the complexity of your setup. The devices are globally approved (e.g., IEC and UL/CSA) and are IE3/IE4 ready. They are available in two sizes, with AC or DC actuation, and across a wide power range. In the main circuit, the devices can be connected via rails. A variety of accessories is available for these contactors, such as surge protectors, auxiliary switches, or terminal covers.

EAN: 4011209321717.
