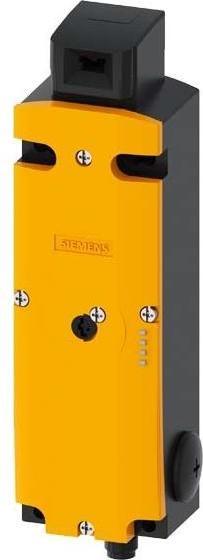

Safety position switch with latching, holding force 2600 N, 5 starting devices, metal housing, M12 connector, integrated ASIsafe, channel 1 = actuator 1Ö, channel 2 = magnet 1Ö, spring force locked, auxiliary release at the front, magnet voltage AC/DC 24 V. No additional 24 V supply is required. Monitoring of actuator 2Ö/1S, monitoring of magnet 2Ö/1S, the corresponding separate actuator 3SE5000-0AV0./-0AW5. must be ordered separately. Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-Interface bus system. The mechanical safety switches are compact due to integrated ASIsafe electronics, which require low power consumption. 3D-coded actuators ensure high manipulation protection. LEDs indicate the current status of the device. The switches are suitable for the highest safety requirements according to PL e or SIL 3. Device variants are also available in high protection class IP69K. Various housing sizes in plastic or metal are available. Additionally, variants with separate actuators, with latching, or as safety hinge switches are offered. A series with high protection class IP69K completes the portfolio. Depending on the version, accessories such as drive heads, separate actuators, connectors, and other mounting and connection accessories are available. Safety is a SIRIUS business.
