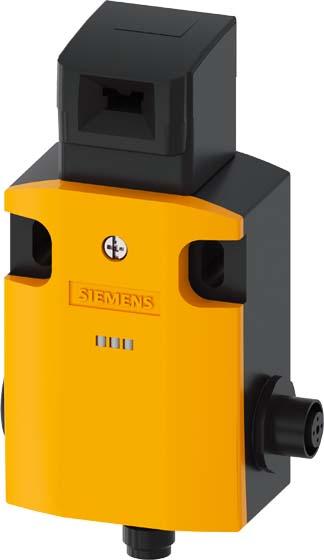

Siemens Safety position switch with separate actuator 5 approach directions Met... 3SF11241QV101BA2

Safety position switch with separate actuator 5 approach directions Metal housing, 56 mm wide ASIsafe integrated AS-i status: 1:F-IN1, 2:F-IN2 3:AS-i/FAULT slow-action switching elements 1Ö with 4-pin M12 plug Channel 1 to Ö, channel 2 to M12 socket right SIRIUS 3SF11 mechanical safety switches for position monitoring of movable guards with direct connection to the AS-Interface bus system.The mechanical safety switches are compact thanks to integrated ASIsafe electronics, which require low power consumption. 3D-coded actuators guarantee a high level of protection against tampering. LEDs indicate the current status of the device. The switches can be used for the highest safety requirements in accordance with PL e or SIL 3 and are available in various housing sizes in plastic or metal. Variants with separate actuator, with guard locking or as safety hinge switches are also available. A series with a high degree of protection IP69K rounds off the portfolio and, depending on the version, actuator heads, separate actuators, plugs and other mounting/connection accessories are available as accessories.safety is a SIRIUS business.
