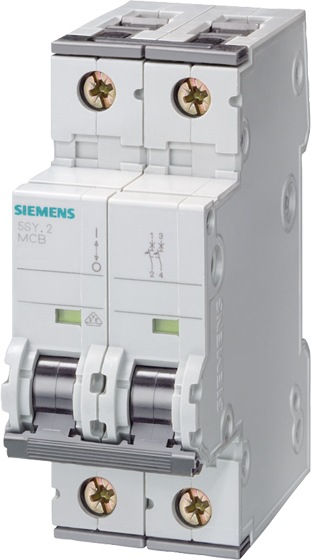

Siemens MCB 1+N Pole Type C 10kA 4A 230V

Area: Sentron
Series: 5SY4
Number of Poles: 1 + N
Rated Current: 4 A
Tripping Characteristic: Type C
AC Rated Voltage: 230 V
Breaking Capacity: 10 kA
Length: 90 mm
Width: 36 mm
Depth: 76 mm

Automatic disconnection, Series 5SY4, 10 kA, B, C, and D. Siemens miniature circuit breakers offer the highest quality and reliability. With the excellent technical characteristics of the devices, you are always on the safe side. Additionally, you benefit from innovative mounting options that allow for quick and easy installation. Siemens miniature circuit breakers can be combined as needed with a variety of additional components, such as control circuit breakers, fault signal contacts, shunt releases, undervoltage releases, remote control mechanisms, or with RCD units for protection against electric shock and fire.

Features and Benefits: Automatic tripping, 1-, 2-, 3-, and 4-pole, DIN rail mounting. Suitable for use in industrial and functional residential construction sectors. Supports quick and convenient removal from the assembly.

Standards: IEC 60898 – Relates to low-voltage circuit breakers for use in households and similar installations. Traditionally known in the UK as miniature circuit breakers.

Q: What are the differences in the tripping characteristics B, C, and D?
A: Characteristic B: Tripping: 3 to 5 times the rated current. Applications: Protection of generators, people, very long cables. Characteristic C: Tripping: 5 to 10 times the rated current. Applications: Protection of circuits and general applications. Characteristic D: Tripping: 10 to 14 times the rated current. Applications: Protection of high-voltage circuits, welders, transformers, and motors.
