Name: Main switch 25A 3p IP65 Einb Wart/Rep 3LD2103-1TP53
Brand: Siemens
SKU: 33746627
Price: 73.9 CHF
Availability: InStock

productDetailPageQuery

Siemens

Sentron load disconnect switch 3LD, emergency stop switch, 3-pole, Iu: 25 A, operational performance at AC-23 A at 400V: 9.5 kW, front-mounted, 1Ö, 1S, rotary drive, red/yellow, 4-hole mounting of the handle. Main and emergency stop switch Sentron 3LD2 for the safe disconnection of loads in many areas, e.g., for three-phase motors, climate and ventilation systems, in processing and manufacturing machines in mechanical and conveyor engineering, in the chemical industry, or in the food and beverage industry. Modular design, quick and easy mounting of auxiliary switches, N-PE terminal, or 4th pole. Optimal network separation from 16 A to 250 A through the lockable rotary drive. Protection class up to IP 65 with encapsulated housing for outdoor applications. Versatile and globally applicable thanks to international IEC, UL, CCC, and marine approvals. The main and emergency stop switches 3LD are available in various versions for front mounting, mounting plates, DIN rail, or panel installation, optionally with direct or door coupling rotary drive. For 3LD2, variants for DC applications are also available. Main and emergency stop switches 3LD - consistent safety for users and systems.

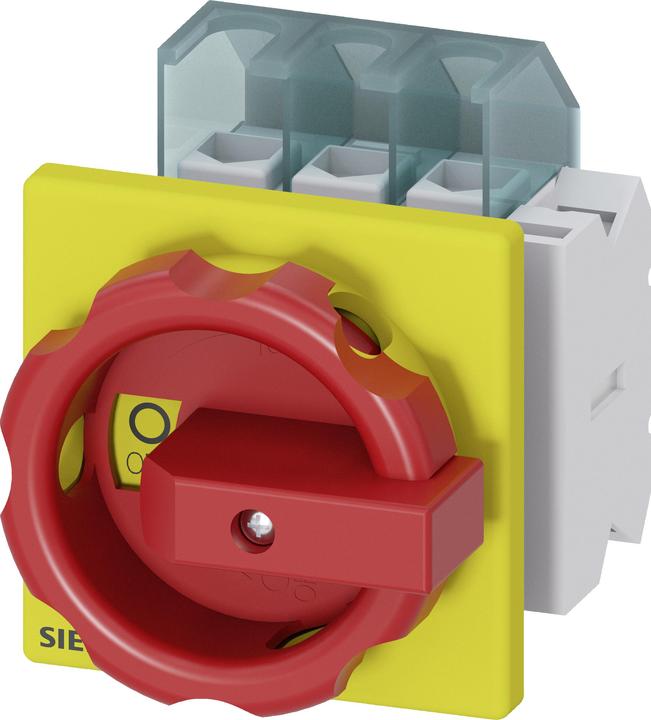

Actual product image Siemens Main switch 25A 3p IP65 Einb Wart/Rep 3LD2103-1TP53

Key specifications

Nominal current

Nominal voltage

Protection type (IP code)

Main switch 25A 3p IP65 Einb Wart/Rep 3LD2103-1TP53
