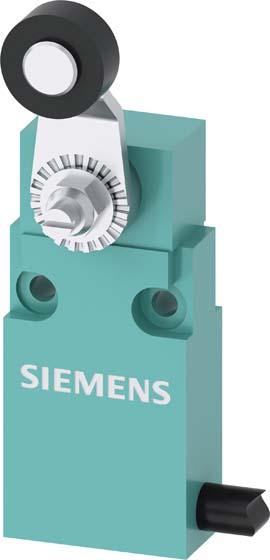

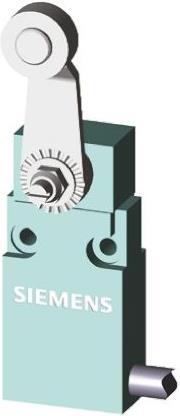

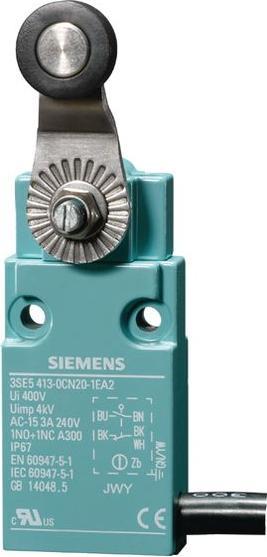

Siemens Limit Switch,Metal,30mm,w/ Rotary Switch

Actuator type: Rotary lever
Actuator included: Yes
Contact configuration: Normally open/normally closed
Switching function: Snap action
Connection type: Cable
Number of contacts: 2
Cable entry size: 5 x 0.75 mm²
Contact number and position: DPST
Series: 3SE5
Width: 30 mm

The limit switch of the 3SE5 series features a compact design and a metal housing, making it ideal for use in harsh environments or on devices with limited space. The switch 3SE5 413 meets EU standards and has a 30 mm wide housing with mounting holes spaced 20 mm apart. The switch 3SE5 423 meets the requirements of the US market and has a 40 mm wide housing with mounting holes spaced 25 mm apart. Both types of the limit switch 3SE5 4 have a depth of only 16 mm and a weight of 80 g (without cable). The metal housing and the rotary actuator element have an IP67 protection rating. There is 1 normally closed and 1 normally open snap contact (the normally open contact meets the requirements for forced opening according to IEC 60947-5-1). The switch is suitable for use in safety circuits up to category 4 according to EN ISO 13849-1. Connection is made with a molded cable of 2 m or 5 m or via an M12 socket. The actuating elements can be rotated in 90° increments. Time can be saved by mounting the fully pre-assembled unit. The switch is resistant to electromagnetic interference.
