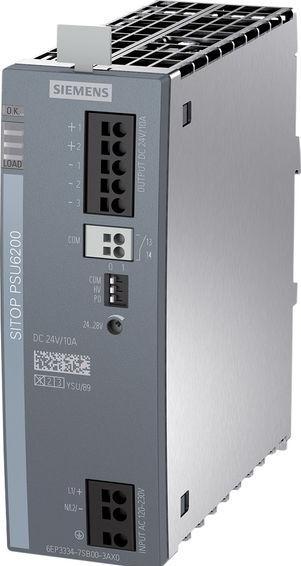

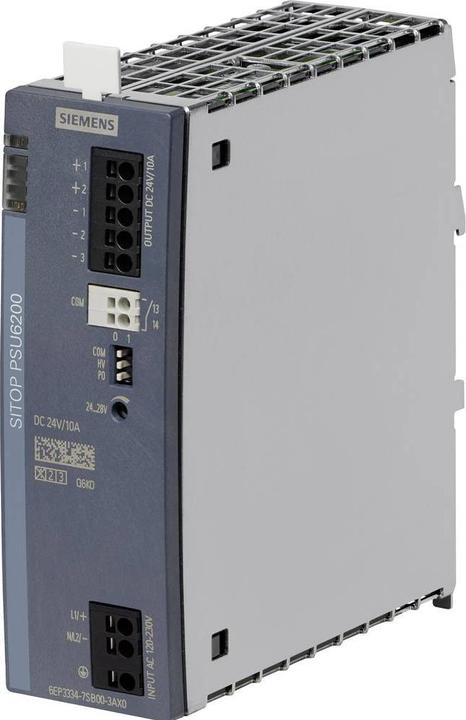

Siemens DIN Rail Power Supply 24V 10A 240W

Siemens Dig.Industr. SITOP PSU6200 6EP3334-7SB00-3AX0

Manufacturer: Siemens Dig.Industr.
Designation: SITOP PSU6200 24V/10A
Type: 6EP3334-7SB00-3AX0
Type of supply voltage: AC/DC
Output voltage: 24 V
Max. output current: 10 A
Adjustable output voltage: yes
Nominal output voltage: 24 V
Nominal output current: 10 A
Short-circuit proof: yes
Rated supply voltage at AC 50 Hz: 240 V
Rated supply voltage at AC 60 Hz: 120 V
Rated supply voltage at DC: 110..240 V
Regulated output voltage: yes
Power output: 240 W
Stabilized: yes
Type of electrical connection: spring-loaded terminal
Rail mounting possible: yes
Wall mounting possible: no
Suitable for panel mounting: yes
Installation width: 45 mm
Installation height: 225 mm
Direct mounting possible: no
Width: 45 mm
Height: 135 mm
Depth: 125 mm
Protection class (IP): IP20

Additional details:
SITOP PSU6200 24 V/10 A regulated power supply
Input: AC 120 - 230 V (DC 110 - 240 V)
Output: DC 24 V/10 A with diagnostic interface

The single-phase SITOP PSU6200 are technology power supplies for demanding solutions, offering maximum functionality for use in complex systems and machines. The wide-range input allows connection to any network in the world and ensures high safety even with significant voltage fluctuations. The Extra-Power delivers up to 150% of the nominal current for short periods. In overload situations, the PSU6200 provides constant current up to a voltage of 15 V DC. The very high efficiency keeps energy consumption and heat generation in the control cabinet low, and the compact metal housing also saves space. To further increase the availability of 24 V, the SITOP PSU6200 power supplies can be combined with buffer, DC UPS, redundancy, and selectivity modules. Regardless of the industry or requirement, Siemens offers reliable and efficient power supplies for every system.
EAN: 4025515155188.
