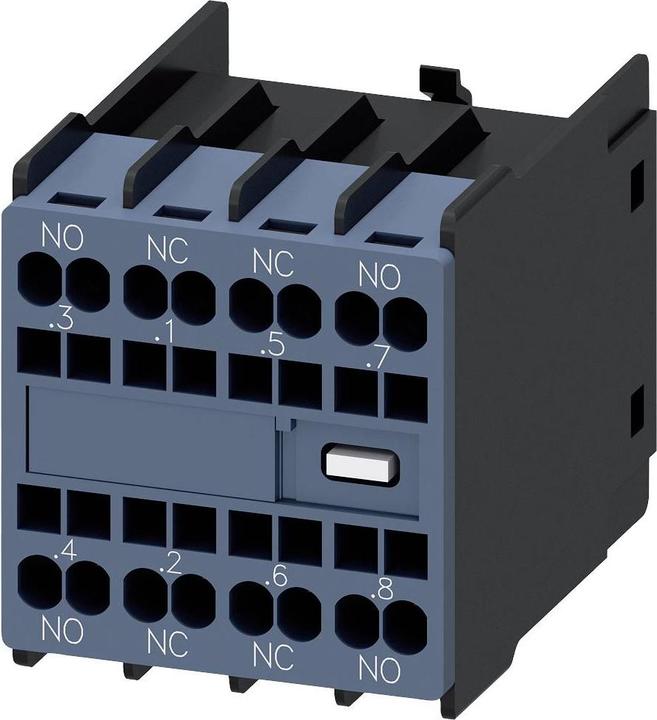

Siemens Auxiliary switch for contactor

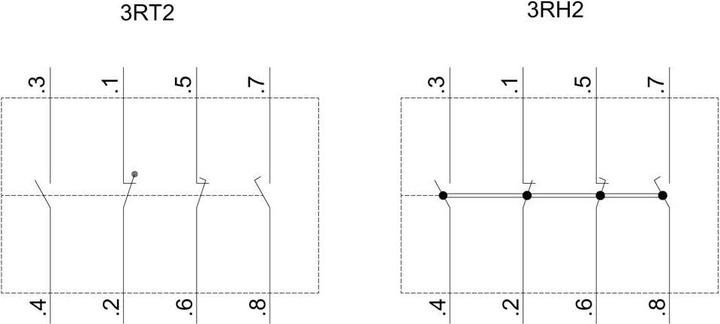

Auxiliary switch, front-mounted, 2 NC + 2 NO, 11 U, 0.3/0.4, 0.1/0.2, 0.5/0.6, 0.7/0.8, current circuit: 1 NC, 1 NO, 1 NO (delayed), 1 NC (advanced), spring terminal connection, for contactors 3RT2 and auxiliary contactors 3RH2. SIRIUS 3RH29 auxiliary switch for expanding auxiliary contacts in the control circuit. The front-mounted auxiliary switches 3RH29 can be installed on the contactors 3RT2 and auxiliary contactors 3RH2 without tools, regardless of size. The auxiliary switches 3RH19/3RH29 are available as front or side-mounted variants, with up to four instant switching or up to two advanced switching normally closed and normally open contacts. The auxiliary switches can be designed as forced-guided contact elements in auxiliary contactors 3RH or as mirror contacts in power contactors 3RT. They are available with screw terminals and spring terminal connections. Simple, efficient, always up to date - the SIRIUS system modular concept.
