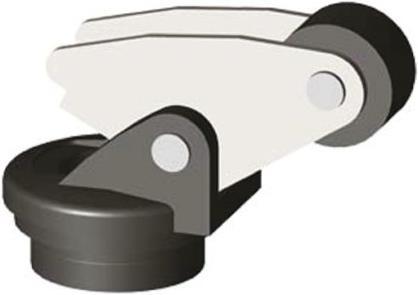

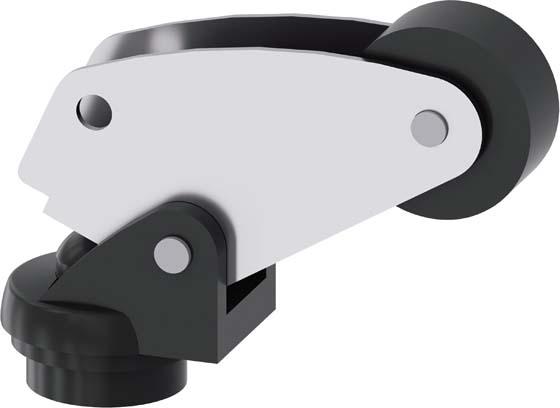

Siemens Angular roller lever with plastic roller

Siemens Digital Industrial Drive Head 3SE5000-0AF05

Manufacturer: Siemens Digital Industrial
Designation: Drive Head Angle Roller Lever
Type: 3SE5000-0AF05
Actuating Element Design: Angle Roller Lever

The drive head 3SE5000-0AF05 is designed for position switches 3SE51/52 EN 50041 and features a metal angle roller lever with a 22 mm plastic roller. It is used for position and location detection of machine components as well as for monitoring the position of safety devices.

The modular design of the 3SE5 position switches allows for a wide variety of configurations with a small number of stock types. The extensive variety of connectors and rollers meets nearly all requirements in industrial everyday use. LEDs indicate the current status of the device. Thanks to the quick connection technology, connection times can be significantly reduced.

The switching points and mountings comply with the standards EN 50047 and EN 50041. The devices are globally approved (IEC, UL). With the appropriate switch configuration, the highest safety requirements according to PL e or SIL 3 can be met. The integrated ASIsafe electronics require low power consumption.

Various housing sizes with different switching elements in plastic or metal, as well as in compact design, are available. Some variants are optionally available with LED status indicators and M12 connectors. The 3SF1 series, with direct connection to the AS-Interface bus system, completes the portfolio.

Accessories such as drive heads and connectors, as well as additional mounting and connection accessories, are available depending on the configuration.

Safety is a SIRIUS business.
EAN: 4011209866614.
