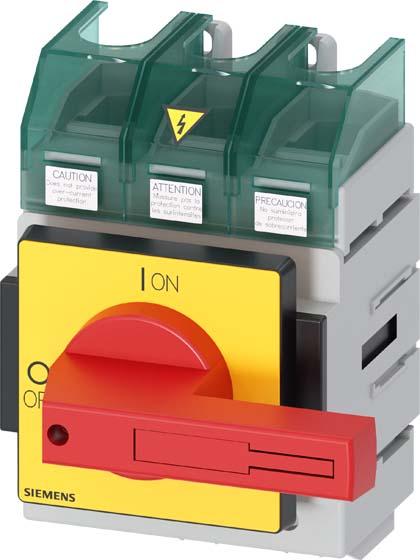

Siemens 3LD58000TK13 SENTRON switch-disconnector 3-pole 150A 50kA

Sentron Last Isolation Switch 3LD5 UL, Emergency Stop Switch, 3-pole, approved according to UL489, UL60947-4-1, and IEC60947-3, UL: 150A, SCCR 50kA at 480VAC, operational power at 480VAC 3-phase: 100hp, IEC: 160A, operational power at AC-23A at 400V: 75kW, floor mounting with direct drive, red/yellow including terminal covers for the supply side. The main and emergency stop switch Sentron 3LD5 is designed for the safe disconnection of loads in various areas of industrial machinery in the US market. Modular design allows for quick and easy installation of auxiliary switches, N-PE terminal, or 4th pole. Optimal network separation from 16 A to 160 A is achieved through the lockable rotary drive. Versatile use thanks to international approvals. With certification according to UL489, it is particularly suited for export to NAFTA countries. Due to the wide range of accessories, the 3LD5 is especially suitable as a main isolator. It can also be used as a manual motor controller, as it is additionally certified according to UL60947-4-1. The main and emergency stop switches 3LD are available in various versions for front mounting, mounting plate, DIN rail, or panel installation, optionally with direct or door coupling rotary drive. Variants for DC applications are also available for the 3LD2. Main and emergency stop switches 3LD - Comprehensive safety for users and systems.
