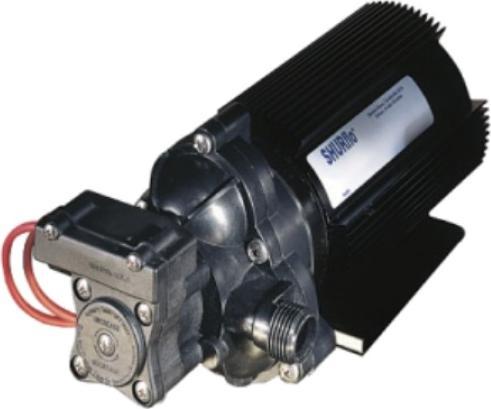

Shurflo 2088 514-145

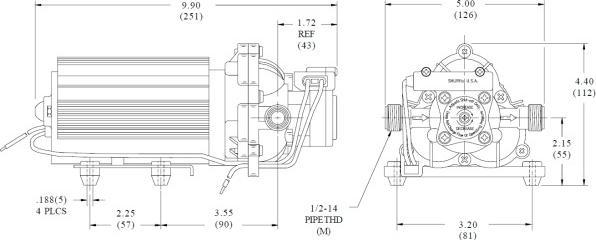

High-performance 3-chamber diaphragm pump with cooling fins. Pressure cut-off at approx. 3.1 bar. Delivery head max. 30 m, delivery rate max. 800 l/h (13.6 l/min). Operating voltage 12 volts DC, max. current consumption 9.5 amps. Dry run possible up to max. 1h. Connection pressure and suction side 1/2" threaded connection. This 12V water pump with a max. power consumption of 110 watts is also suitable for operation with small stand-alone systems The 2088 pump series is the result of a development process lasting many years. The result is a low-voltage diaphragm pump of the highest quality. Dry-running resistant: for clean water as well as for various chemicals. Rated voltage 12V Current consumption 4.2 to 9.5 A Operating mode Continuous operation (100% duty cycle) Equipment Pressure switch Material Pump housing Polypropylene Material Valves Santoprene Material Diaphragm Santoprene Delivery head Flow rates 7mFlow rates 7m 11 L/min 14m 10 L/min 21m 8,7 L/min 28m 7,8 L/min Self-priming height 2,7m Inlet and outlet 1/2'' G Dimensions (lengthxdiameterxheight) 250x130x110mm Weight 3,1 kg Required fuse 12A Liquids Viscosity Up to 65 cSt (65 mm2/s) Temperature Max. 77°C Grain size Max. 0.5mm If the pressure switch has to perform many load cycles to switch the pump on and off, it is recommended to connect a relay in between. Data sheet_English Manual_English For general information on batteries, see: Things to know about batteries.
