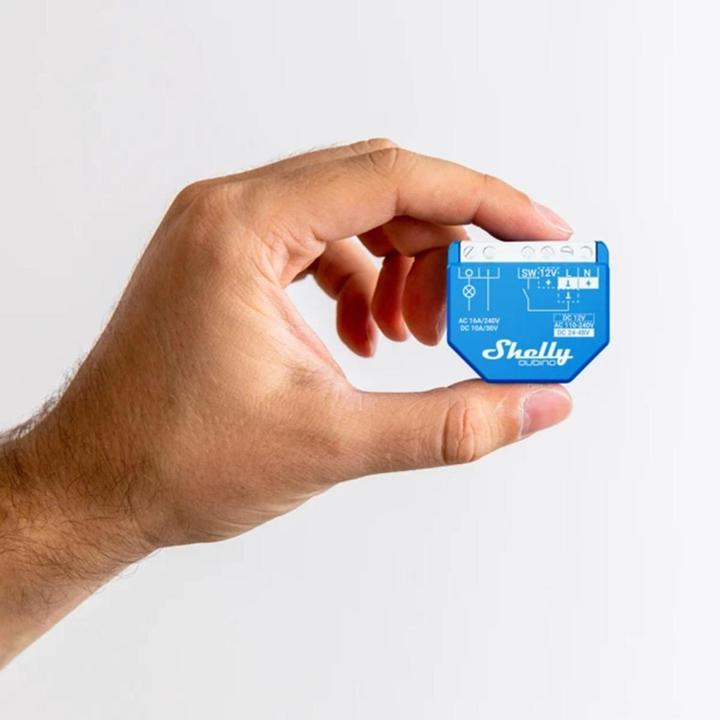

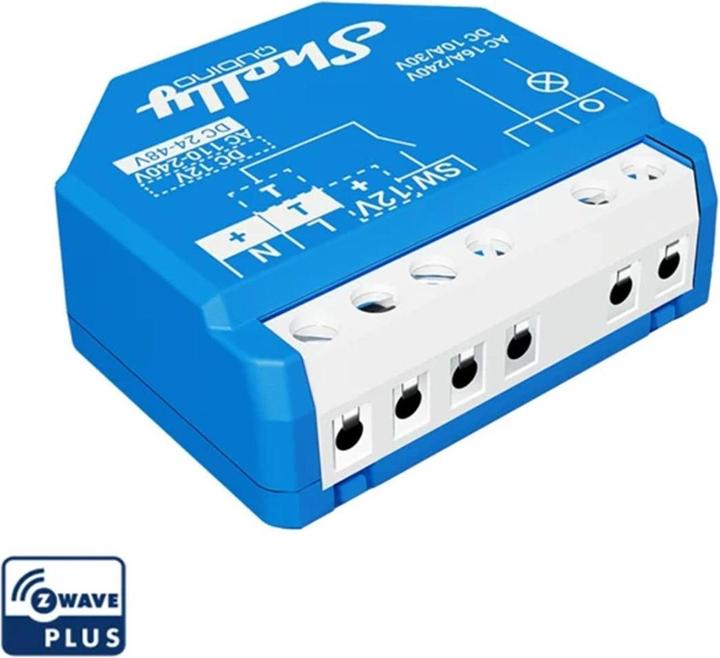

Shelly ALREZWE W 1 - Qubino Wave 1 Relay 16A

The Shelly Qubino Wave 1 Relay 16A is ideal for automating electric locks, gates, garage doors, irrigation systems, and more.

The output contact is potential-free (voltage-free contact), allowing various power loads (up to 16 A) to be connected to the device.

The device can be controlled via a smartphone or tablet according to schedules or scenes. It is compatible with switches or buttons.

A gateway (Smart Hub) is required for the configuration of the device.

Features:

• Z-Wave Relay 1 channel 16A total
• Potential-free contact - voltage-free

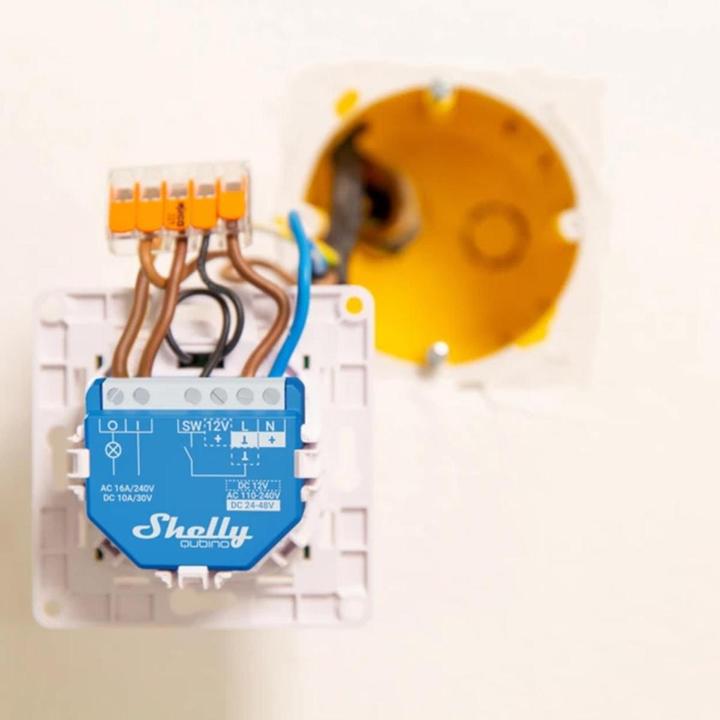

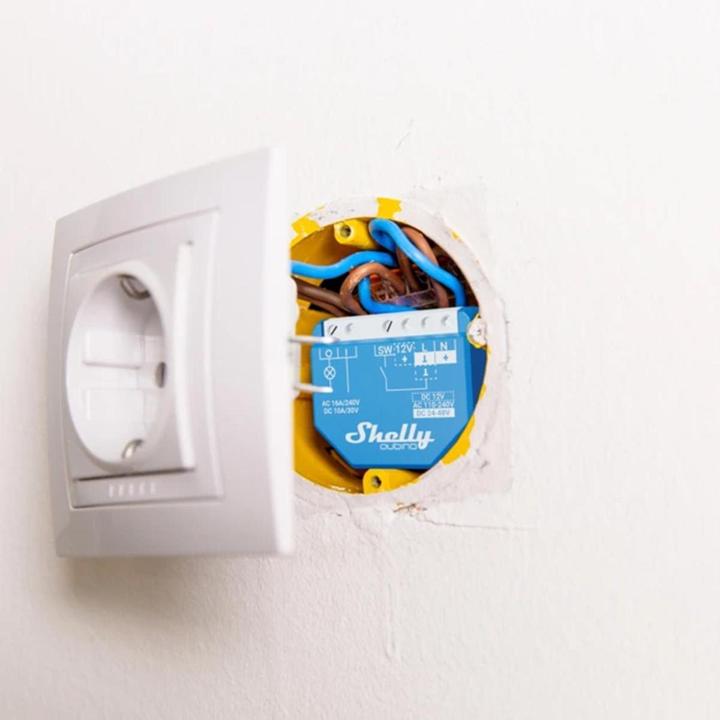

• Compact size ensures easy installation behind any wall switch or wall socket
• Extended radio range: Up to 40 m indoors
• SmartStart for automatic setup
• OTA firmware update for over-the-air updates
• S2 Security authenticated
• Extremely low energy consumption: Less than 0.3 W
• Power supply: 110-240 V AC / 24-48 V DC / 12 V DC ±10%
• Max. switching current AC: 16 A
• Max. switching voltage DC: 30 V
• Max. switching current DC: 10 A
• Overheat protection: Yes
• Range: Up to 40 m indoors (depending on local conditions)
• Z-Wave S800
• Ambient temperature: -20°C to 40°C
• Humidity: 30% to 70% RH
• Maximum altitude: 2000 m

Additional details:

• Item dimensions (WxHxL) 42 x 37 x 16 mm
• Packaging dimensions (WxHxL) 65 x 65 x 25 mm
• Item weight (net) 0.026 Kg
• Item weight (gross) 0.049 Kg
• Z-Wave Plus
• Z-Wave S2
• WEEE
• CE
• IP Class IP20.
