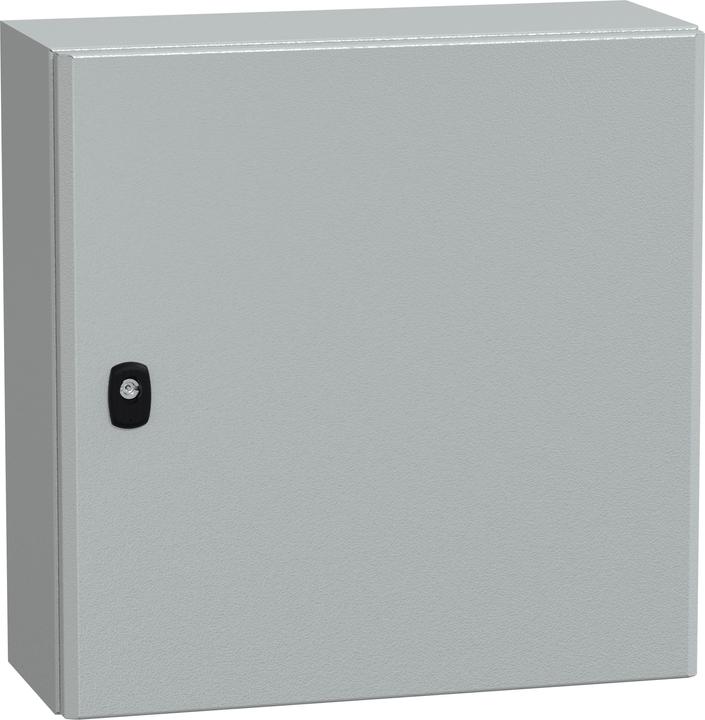

Schneider Electric Spacial S3D Enclosure, 500x500x200mm
50 cm, 50 cmSupplied by
Elektro4000 DE
free shipping
Height Outside: 500 mm
Width Outside: 500 mm
Outer Depth: 200 mm
Dimensions Outside: 500 x 500 x 200 mm
Enclosure Material: Steel
Transparent Door: No
IP Protection Class: IP66
Chassis Plate: No
Door Lock Type: Double Bolt
Screen Connection Plate: Yes
Color: Gray
RAL Code: RAL 7035
Mounting Kit: No
Internal Mounting Type: Panel

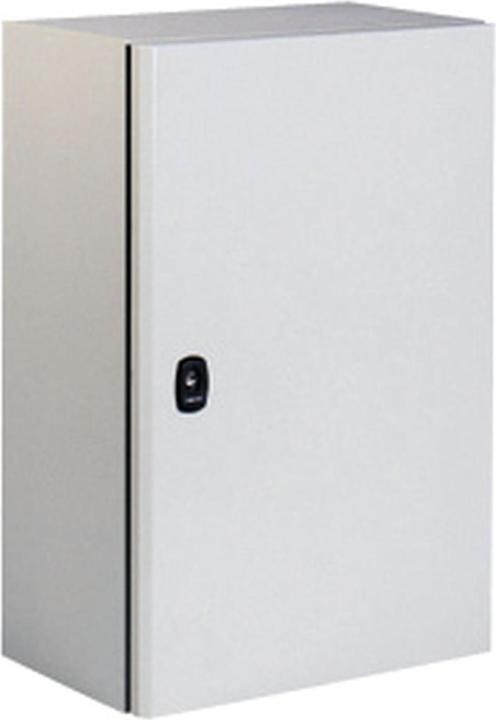

Enclosure Spacial S3D. The Schneider Electric series of Spacial S3D wall enclosures consists of a one-piece, folded, and welded enclosure with a double-walled, channel-shaped front profile. These compact multi-purpose enclosures are made of galvanized steel for mounting plates. All models can be used indoors and outdoors and are characterized by high reliability and excellent quality. The gray, powder-coated steel enclosures come with a mounting plate for cable glands. Features and Benefits: IK10 means that the enclosures are protected against impacts of 20 Joules (equivalent to the impact of a 5 kg mass falling from a height of 400 mm above the impact surface). High UV resistance. Protection class IP66 against dust and strong water jets. Usable on ship decks. Door easily removable, with reversible door hinges, 20 mm double fold for excellent strength. Opening of 120°. Easily detachable and non-losing hinges for easier removal and reversal of the door. Typical Applications: The Spacial S3D enclosures are an ideal solution for use in industrial automation and control, power distribution, electronics, and industrial networks.
Height | 50 cm |
Material group | Metal |
Width | 50 cm |
Type of workshop cabinet | Wall-mounted shelf |
Item number | 9908465 |
Manufacturer | Schneider Electric |
Category | Workshop cabinets |
Manufacturer no. | NSYS3D5520P |
Release date | 16.10.2018 |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Steel |
Surface finish | Powder coating |
Type of workshop cabinet | Wall-mounted shelf |
Load capacity | 50 kg |
Number of doors | 1 x |
Number of keys | 1 x |
Delivery condition | Self-assembly |
Model series | NSYS3D5520P |
Design of locker frame | With base plinth |
Housing load capacity | 50 kg |
Case material | Steel |
Country of origin | France |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 20 cm |
Width | 50 cm |
Height | 50 cm |
Depth | 20 cm |
Weight | 13 kg |
Length | 55 cm |
Width | 50 cm |
Height | 25 cm |
Weight | 10 kg |
