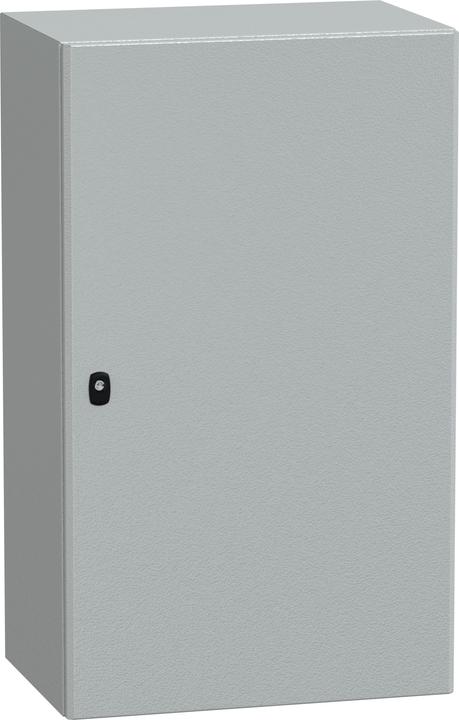

Schneider Electric Enclosure, Spacial 3D, 1000x600x400mm

Height External: 1000 mm
Width External: 600 mm
External Depth: 400 mm
External Dimensions: 1000 x 600 x 400 mm
Housing Material: Steel
Transparent Door: No
IP Protection Class: IP66
Chassis Plate: No
Door Lock Type: Double Bolt
Screen Connection Plate: Yes
Color: Gray
RAL Code: RAL 7035
Mounting Kit: Yes
Internal Mounting Type: Panel

Spacial S3D wall-mounted connection boxes with chassis plate. The Schneider S3D series meter cabinet for wall mounting is made from a one-piece, bent, and welded steel sheet with a double-walled, channel-shaped front profile. The Spacial S3D series includes perforated rails on the door, with a drilled diameter of 4.2 mm on a 25 mm grid: cabinets with an external height of 400 mm have 2 vertical rails, and cabinets with an external width of 800 mm have 2 horizontal and vertical rails. Features and benefits: IP66 protection class, meaning the cabinets are dust-tight and provide protection against strong water jets and heavy seas. External mechanical impact resistance of IK10 (protected against objects weighing up to 5 kg from a drop height of 20 cm). Pass-through plate with cable gland and hole grid for maximum access. High UV resistance. Aluminum hinge pins. The flap can be removed and reversed to open left or right. The flap can be opened up to 120°. Wall brackets are mounted from the outside. Double thickness 20 mm return fold flaps for excellent strength. Polyurethane door seal. The included handle has two functions: as a key and as a tool for removing the screw covers.
