Schneider Electric Sikkerhedsafbryder VCF-6GE 45KW/140A

Schneider Electric emergency stop main switch VCF6GEN

Manufacturer: Schneider Electric
Designation: Emergency stop main switch 140A 3p in housing
Type: VCF6GEN
Design as main switch: Yes
Design as maintenance/repair switch: No
Design as safety switch: No
Design as emergency stop device: Yes
Design as reversing switch: No
Number of switches: 1
Max. rated operating voltage Ue at AC: 690 V
Rated operating voltage: 0...690 V
Rated continuous current Iu: 140 A
Rated continuous current at AC-23, 400 V: 83 A
Rated continuous current at AC-21, 400 V: 140 A
Rated operating power at AC-3, 400 V: 37 kW
Rated short-time withstand current Icw: 2.1 kA
Rated operating power at AC-23, 400 V: 45 kW
Switching capacity at 400 V: 90 kW
Conditional rated short-circuit current Iq: 10 kA
Number of poles: 3
Motor drive optional: No
Motor drive integrated: No
Voltage release optional: No
Device type: Complete device in housing
Suitable for floor mounting: No
Suitable for front mounting 4-hole: Yes
Suitable for front mounting central: No
Suitable for distribution board installation: No
Suitable for intermediate installation: No
Colour of the operating element: Red
Design of the operating element: Long rotary handle
Lockable: Yes
Connection type main circuit: Screw connection
Protection class (IP), front: IP65

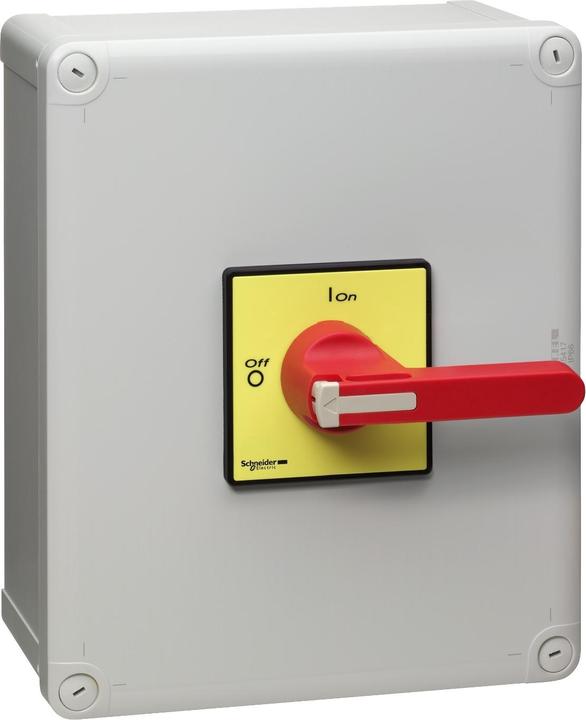

Further details: Vario isolating switch in housing VCF 3P, 140 A. Front plate 90 x 90 mm. Complete device, 3-pole, IP 65, with rotary actuator. Red handle, lockable with 3 padlocks DM 4 mm to DM 8 mm (supplied without padlocks). Switch position O I, front plate yellow.
