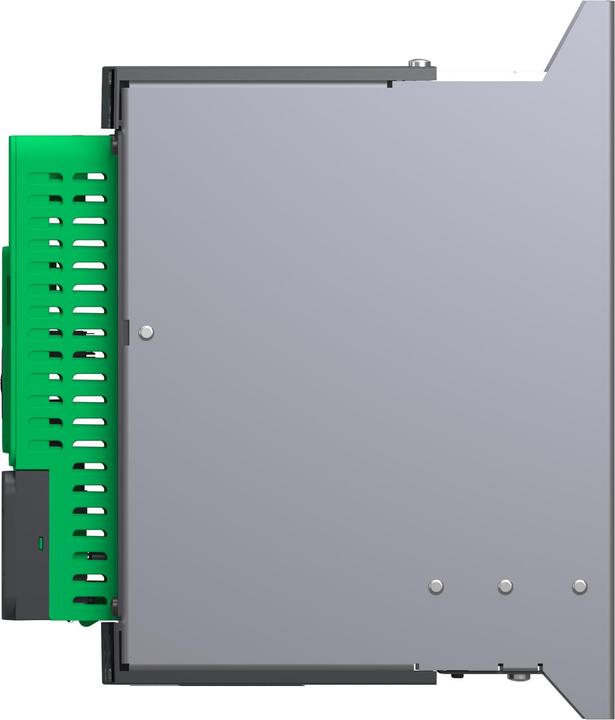

Schneider Electric SCHN Soft starter

The Altivar Soft Starter ATS480 is designed for starting and stopping asynchronous motors with voltages ranging from 208V to 690V. It meets the demands of the most challenging applications in both normal and heavy-duty environments. With a rated current of 62A under normal overload, it operates motors from 15kW to 45kW depending on the supply voltage. Developed for digitalization, it is networked and optimized to comply with cybersecurity standards, simplifying project execution and maximizing application availability. Its torque control manages acceleration and deceleration effectively. Thanks to dynamic braking and DC injection, it efficiently handles applications with high inertia. It can be connected in the motor line or in a delta configuration to reduce operating current. The embedded testing routine simplifies commissioning in delta configuration. The dimensions are 190mm (width) x 247mm (depth) x 290mm (height), and it weighs 8.3kg. The Altivar Soft Starter ATS480 is designed to monitor processes, infrastructures, and industrial machines. It complies with IEC/EN60947-4-1 and is certified according to CE, cULus, UKCA, CCC, RCM, EAC, as well as marine certified by DNV, ABS, BV, and CCS. Control terminals, remote mounting kits, and communication modules are standardized with Altivar Drives. Line reactors and DNV kits are identical to the predecessor ATS48. The ATS480 is compatible with ATS48, sharing the same footprint, mounting, torque control, I/O, and menus. Integrating the Altivar Soft Starter ATS480 into EcoStruxure significantly simplifies the selection of architecture, detailed design, and execution of ventilation and electrical systems. It is a Green Premium product designed to consider environmental aspects beyond current guidelines and regulations, compliant with RoHS and REACH.
