−21%

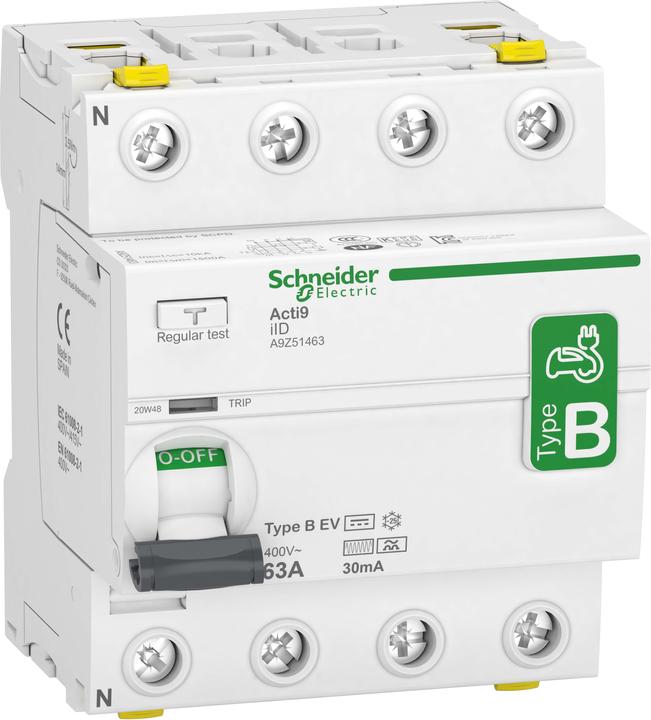

Schneider Electric RCD IID 4P 63A 30mA TYPE B-EV (A9Z51463)

was CHF825.–
Ratings
Delivered between Wed, 3.9. and Wed, 24.9.

Product details

The FI IID 4P 63A 30mA Type B-EV (A9Z51463) from Schneider Electric is a highly advanced residual current circuit breaker specifically designed for electric charging stations. With a rated current of 63A and a rated residual current of 30mA, this device provides reliable protection against fault currents that may occur during the use of electric vehicles. The switch is 4-pole and designed for an operating voltage of 400V AC at 50Hz. It meets the stringent standards IEC/EN 61008-2-1, IEC/EN 62423, and IEC 61543, underscoring its high quality and safety. The mechanical fault indication (VisiTrip) allows for easy checking of the device's status, while the safe contact indication (VisiSafe) signals voltage-free conditions on the outgoing side. Installation is straightforward on a DIN rail, and the double connection terminals enable connections from both sides for cables or busbars. Additionally, optional auxiliary modules can be added to extend functionality.

  • All-current sensitive circuit breaker for electric charging stations
  • Mechanical fault indication (VisiTrip) for fault diagnosis
  • Safe contact indication (VisiSafe) for voltage-free status
  • Easy removal of the device when a busbar is installed
  • Optional auxiliary modules to expand functionality.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
44 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
31991094

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9Z51463
Release date
24.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
63 A
Rated voltage
400 V
voltage type
AC/DC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
44 mm
Width
4 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
