Schneider Electric Radio limit switch XCMW plunger XCMW110

Schneider Electric Position Switch XCMW110

Manufacturer: Schneider Electric
Description: Wireless position switch
Type: XCMW110
Sensor width: 30 mm
Sensor diameter: 0 mm
Sensor height: 74 mm
Sensor length: 16 mm
Rated operational current Ie at AC-15, 24 V: 0 A
Rated operational current Ie at AC-15, 125 V: 0 A
Rated operational current Ie at AC-15, 230 V: 0 A
Rated operational current Ie at DC-13, 24 V: 0 A
Rated operational current Ie at DC-13, 125 V: 0 A
Rated operational current Ie at DC-13, 230 V: 0 A
Switching function: other
Latching switching function: no
Electronic output: no
Forced opening: yes
Interface design: none
Interface design for safety-related communication: other
Housing design: rectangular
Housing material: plastic
Housing coating: other
Actuator design: plunger
Actuator orientation: other
Electrical connection design: other
With status indicator: no
Suitable for safety functions: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -25..55 °C
Protection class (IP): IP65

Schneider Electric Position Switch XCMW110: additional details

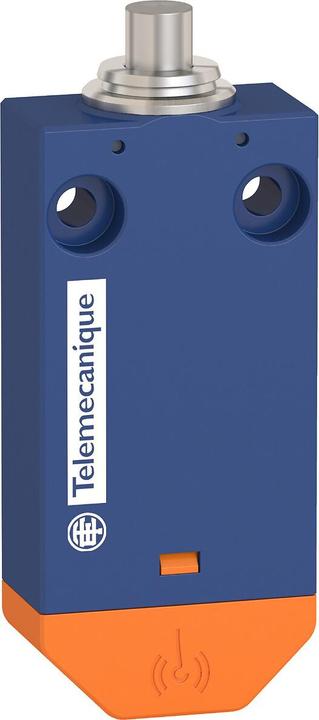

Miniature wireless position switch with plunger, battery-free operation based on Zigbee, plastic housing.
