Product details

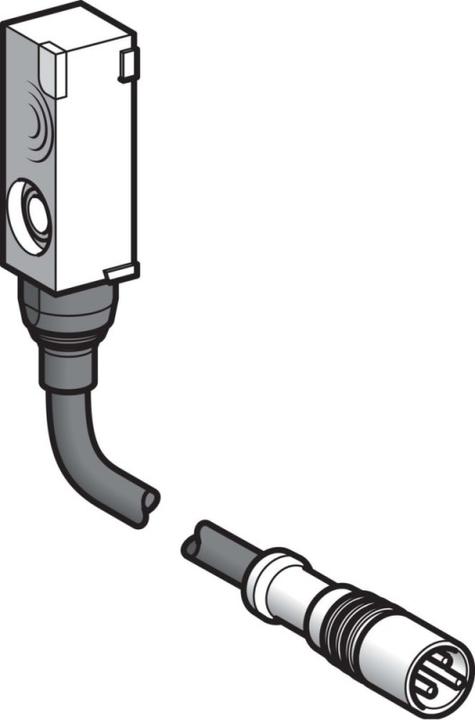

TE Sensors proximity switch inductive XS7J1A1DAL01M8 Manufacturer :TE Sensors Designation :Proximity switch inductive NO, 2L, 12-24VDC, M8 Type :XS7J1A1DAL01M8 Width of sensor :15 mm Height of sensor :32 mm Length of sensor :8 mm Sensor diameter :8 mm Mechanical installation condition for sensor :flush Switching distance :5 mm Suitable for safety functions :no Switching function version :NC contact Switching output version :2-wire Electrical connection version :M8 plug connector Number of semiconductor outputs with signalling function :1 Number of safe semiconductor outputs :1 Type of actuation :metallic target Interface version :without Interface design for safety-related communication :without Housing design :rectangular Housing coating :other Cascadable :no SIL according to IEC 61508 :without Performance level according to EN ISO 13849-1 :without Max. output current at safe output :100 mA Output current at safe output :100 mA Supply voltage :12..24 V Rated control supply voltage Us at DC :12...24 V Voltage type :AC/DC Switching frequency :5000 Hz With monitoring function of downstream devices :no Enclosure material :Plastic Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :without Immunity to magnetic fields :Immunity to DC magnetic field TE Sensors proximity switch inductive XS7J1A1DAL01M8: Further details This OsiSense XS flat (8 x 22 x 8 mm) inductive proximity sensor has a PBT housing. It has a switching distance of 2.5 mm, normally closed function and an M8 connector. It has a supply voltage of 12 to 24VDC. This universal rectangular inductive proximity sensor can be mounted directly on a surface with a single screw fixing point and is C-Tick certified. EAN: 3389110273526.
