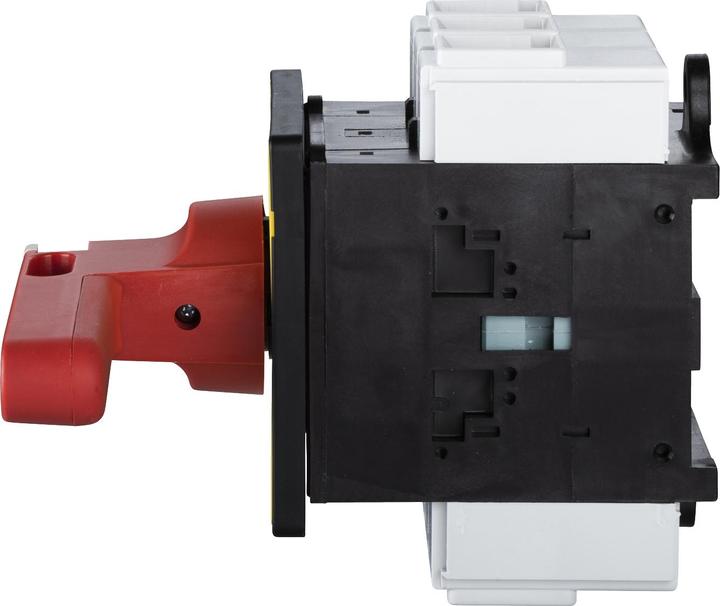

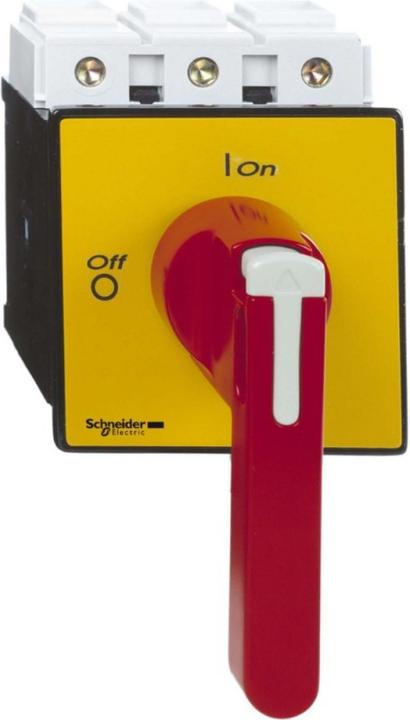

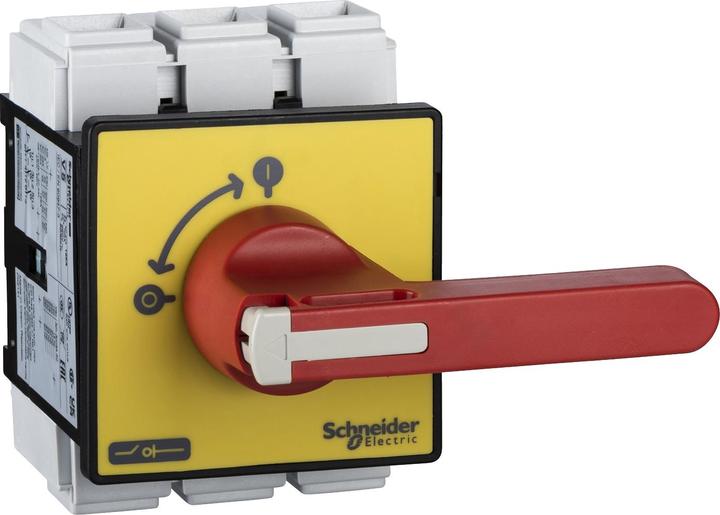

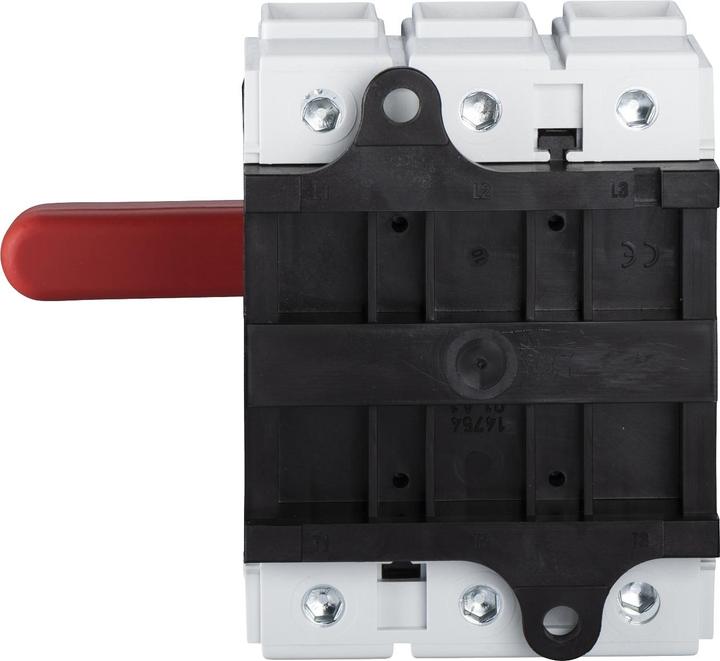

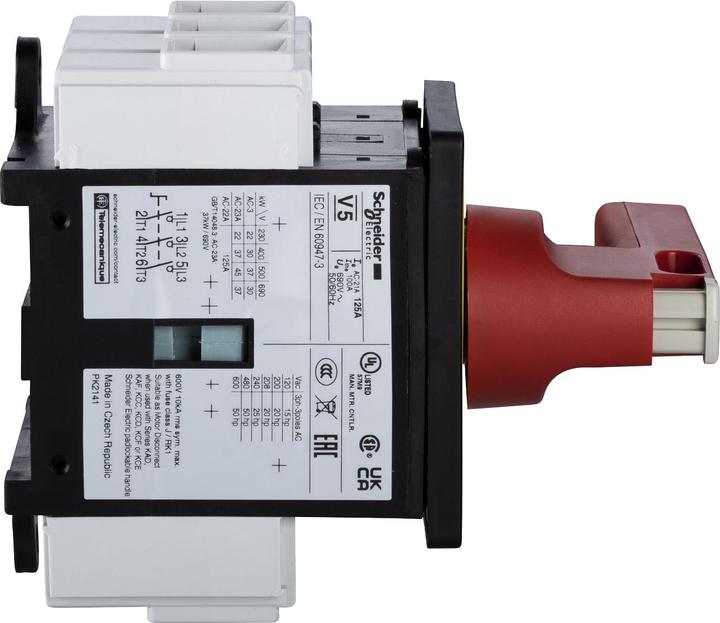

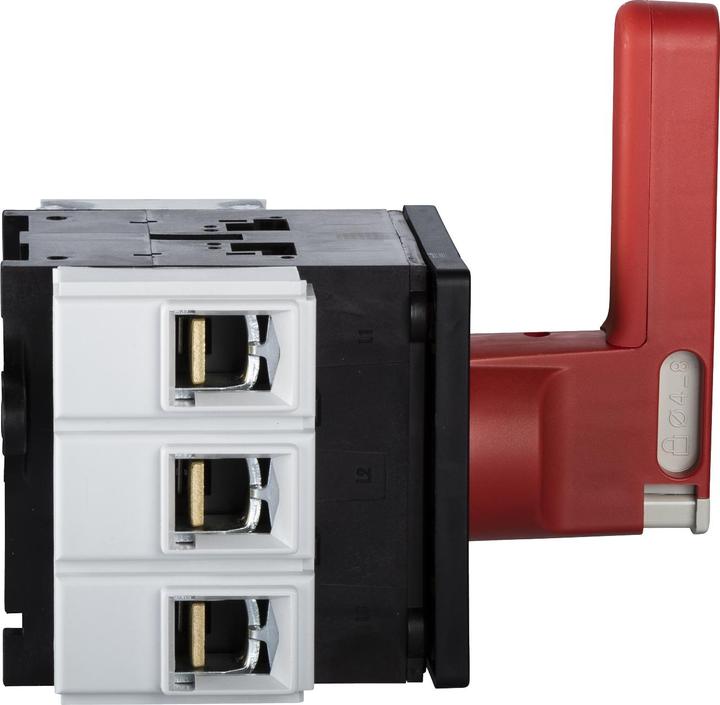

Schneider Electric Main emergency stop switch VCF5

Ratings
Delivered between Sat, 16.5. and Fri, 22.5.
More than 10 pieces in stock at supplier
free shipping

Product details

Number of poles: 3
Max current: 125 A
Mounting type: DIN rail
Power: 45 W
Protection class: IP20, IP65
Padlock option: Yes
Operating voltage: 690 Vac
Electrical phases: 3
Switching capacity: 8 kV
Length: 60 mm
Min operating temperature: -20 °C

The values for the rated operating voltage indicated in the price table refer to a voltage of 230/240 V, and the numbers in parentheses refer to a voltage of 690 V. The higher rated current applies to outdoor use, while the lower rated current applies to use in an enclosure. Disconnect switch, front mounting/door fastening. Customizable by simply adding an auxiliary contact, neutral contact, or up to 3 main contacts to the 3-pole base switch. Suitable for switching main supply/emergency stop at 690 V rated voltage. Protection against ingress of liquids according to IP55. Fully compliant with BS/EN 60947-3. Supplied as a complete kit in one package.

Key specifications

Nominal current
125 A
Nominal voltage
690 V
Protection type (IP code)
IP65

General information

Item number
9717665
Manufacturer
Schneider Electric
Category
Mobile power distributors
Manufacturer No.
VCF5
Release date
24.9.2018

Colour

Colour
Red
Exact colour description
GE, rt

Mobile power distributor features

Nominal current
125 A
Nominal voltage
690 V
mounting type
DIN top-hat rail
Number of poles
3x
Actuator Type
Rotary knob
Protection type (IP code)
IP65

Origin

Country of origin
Czech Republic, France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
15.72 kg
Climate contribution
CHF 0.37

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
3-pole, 4-hole bef., Emergency stop/main switch, Front plate yellow., IP 65, Lockable with 3 padlocks DM 4 mm to DM 8 mm (supplied without padlocks). Switch position O I, with rotary drive. For mounting in the enclosure door. Red handle

Product dimensions

Width
90 mm
Length
160 mm
Height
125 mm
