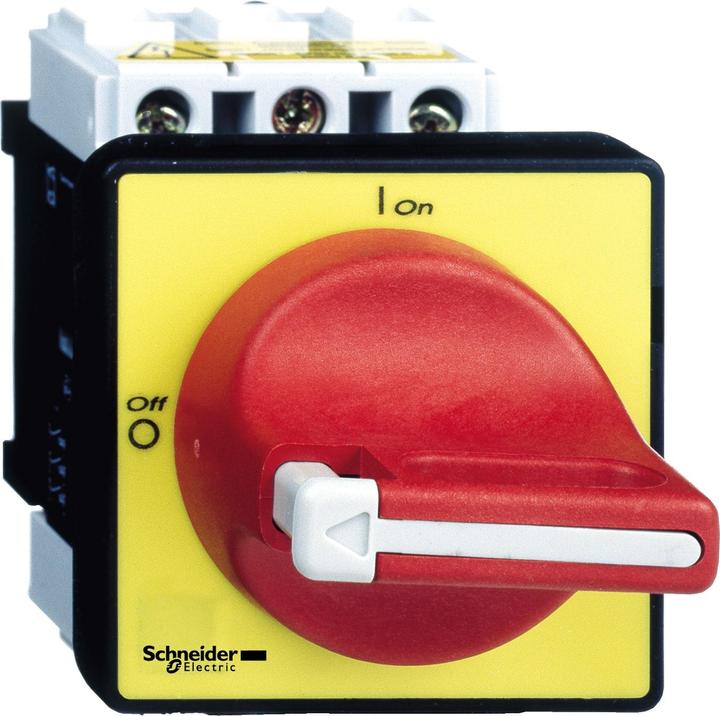

Schneider Electric Main emergency stop switch VCD2

Ratings
BrandMore from Schneider Electric
Delivered between Fri, 4.7. and Tue, 22.7.

Product details

Number of poles: 3
Range: TeSys
Series: VARIO
Power: 18.5 W
Protection class: IP20, IP65
Padlock option: Yes
Operating voltage: 690 Vac
Electrical phases: 3
Switching capacity: 8 kV
Minimum operating temperature: -20°C

UL, CSA, GL. The values indicated in the price table for the rated operating voltage refer to a voltage of 230/240 V, and the numbers in parentheses refer to a voltage of 690 V. The higher rated current applies to outdoor use, while the lower rated current applies to use in an enclosure. Disconnect switch, front mounting/door fastening. Customizable by simply adding an auxiliary contact, neutral contact, or up to 3 main contacts to the 3-pole base switch. Suitable for switching main supply/emergency stop at 690 V rated voltage. Protection against ingress of liquids according to IP55. Fully compliant with BS/EN 60947-3. Delivered as a complete kit in one package.

Key specifications

Nominal current
40 A
Nominal voltage
690 V
Number of outlets
1 x
Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Protection type (IP code)
IP65
Item number
9731075

General information

Manufacturer
Schneider Electric
Category
Mobile power distributors
Manufacturer no.
VCD2
Release date
24.9.2018
External links
Manufacturer's site (de)

Colour

Colour
Red
Exact colour description
Red, Yellow

Mobile power distributor features

Nominal current
40 A
Nominal voltage
690 V
Number of outlets
1 x
Area of use
Inside
mounting type
Recessed mounting
Number of poles
3 x
Actuator Type
Short twist grip
Power
0.02 kW
input voltage
690 V
number of poles
3
Protection type (IP code)
IP65

Safety

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
3P, 690V, Emergency stop/main switch

Product dimensions

Width
60 mm
Length
121 mm
Height
74 mm
