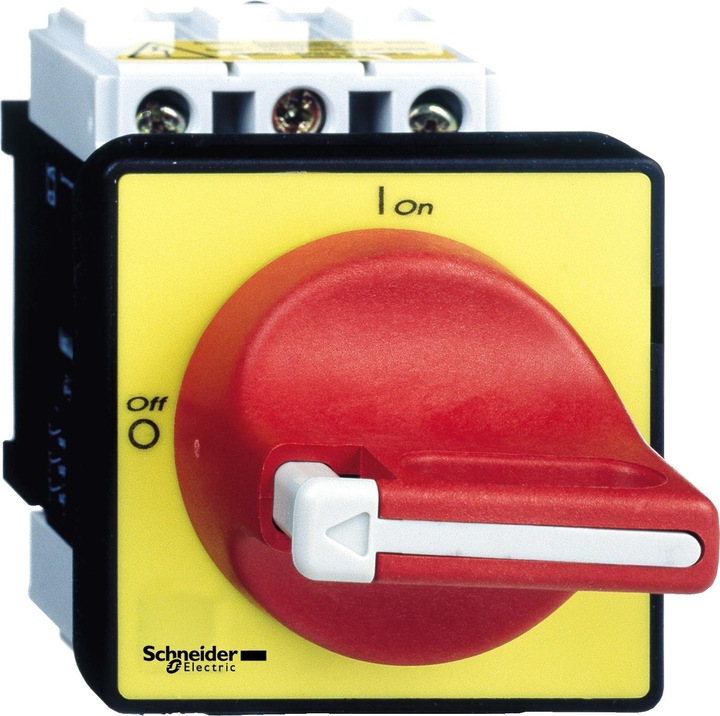

Schneider Electric Main emergency stop switch VCD0

Number of poles: 3
Range: TeSys
Series: VARIO
Power: 15 W
Protection class: IP20, IP65
Padlock option: Yes
Operating voltage: 690 Vac
Electrical phases: 3
Switching capacity: 8 kV
Length: 60 mm
Connection type: Screw mounting

The nominal operating voltage figures refer to a voltage of 230/240 V, and the figures in brackets refer to a voltage of 690 V. The higher rated current is for outdoor use, while the lower rated current is for use in a housing. This disconnector can be front mounted or door mounted. It is individually adaptable by simply attaching an auxiliary contact, neutral contact, or up to 3 main contacts to the 3-pole base switch. It is suitable for switching main supply/emergency stop at 690 V rated voltage and provides protection against penetrating liquids according to IP55. It is in complete conformity with BS/EN 60947-3 and is delivered as a complete kit in one package.
