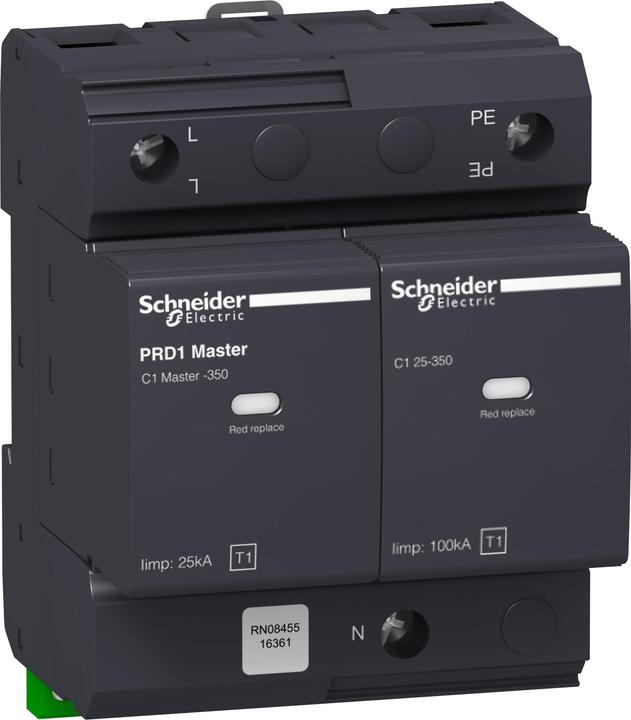

Schneider Electric Lightning current arrester type1 PRD1 Master1p
Delivered between Thu, 17.9. and Thu, 1.10.
More than 10 items ordered
More than 10 items ordered
free shipping
Nominal voltage2
Product details
Blitzstrom arrester PRD1 Master. Single-pole + N, surge arrester class Type 1, nominal discharge current 25 kA, maximum continuous voltage (Uc) 350 V, nominal voltage (Un) 230/400 V, grounding system TT, TN-S. Surge protection for low-voltage systems. Installation takes place at the supply point of the system. Arresters of the PRD1 25r and PRD1 Master series feature pluggable protection modules. The lightning current arrester PRD1 Master meets the following standards: IEC 61643-1 and EN 61643-11.
Surge protection type | Lightning current arrester |
Number of conductors | 1x |
Test class | Type 2 |
Item number | 12899566 |
Manufacturer | Schneider Electric |
Category | Surge protection |
Manufacturer No. | 16361 |
Release date | 12.3.2020 |
External links |
Colour | Grey |
Exact colour description | Anthracite-grey |
Surge protection type | Lightning current arrester |
Number of conductors | 1x |
Lightning impulse current | 50 kA |
Rated leakage surge current | 100 kA |
Nominal voltage | 400 V |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29.48 kg |
Climate contribution | CHF 0.70 |
Length | 0.07 m |
Width | 0.07 m |
Height | 0.09 m |
