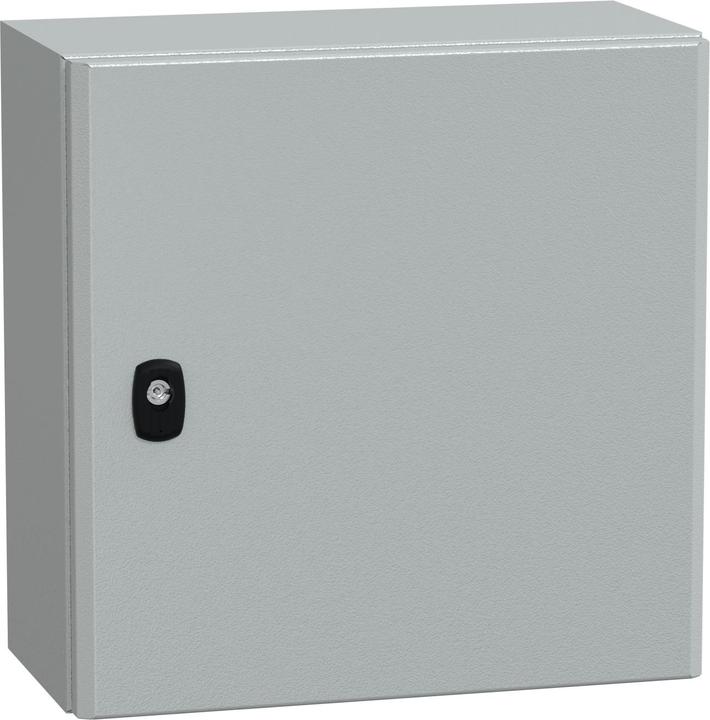

Schneider Electric Enclosure, Spacial 3D ATEX 400x400x200mm

External height: 400 mm
External width: 400 mm
External depth: 200 mm
External dimensions: 400 x 400 x 200 mm
Housing material: Steel
Transparent door: No
IP protection class: IP66
Chassis plate: No
Door lock type: Quarter turn
Screen connection plate: Yes
Color: Gray
RAL code: RAL 7035
Mounting kit: Yes
Internal mounting type: Panel

4 mounting screws M8x25 and 4 crimped blind nuts. The lock is a quarter-turn cam lock with a key. Spacial S3DEX ATEX enclosures for wall mounting. The Schneider enclosures of the S3DEX series for wall mounting consist of a base body made of one-piece, bent, and welded steel sheet with a double-walled, channel-shaped front profile. The multipurpose enclosures have a painted surface in light gray (RAL 7035).

Features and benefits:

• Protection class IP66, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas.
• External mechanical impact resistance of IK10 (protected against objects weighing up to 5 kg from a drop height of 20 cm).
• The ATEX certification means that the enclosures are suitable for use in an explosive atmosphere.
• Enclosures up to 600 mm in height have a cam lock without a bolt.
• Enclosures over 600 mm in height have a cam lock with a double bolt, resulting in a total of three locking points.
• Simple door with polyurethane seal.
• External grounding through crimped blind nut (grounding braid not included).
