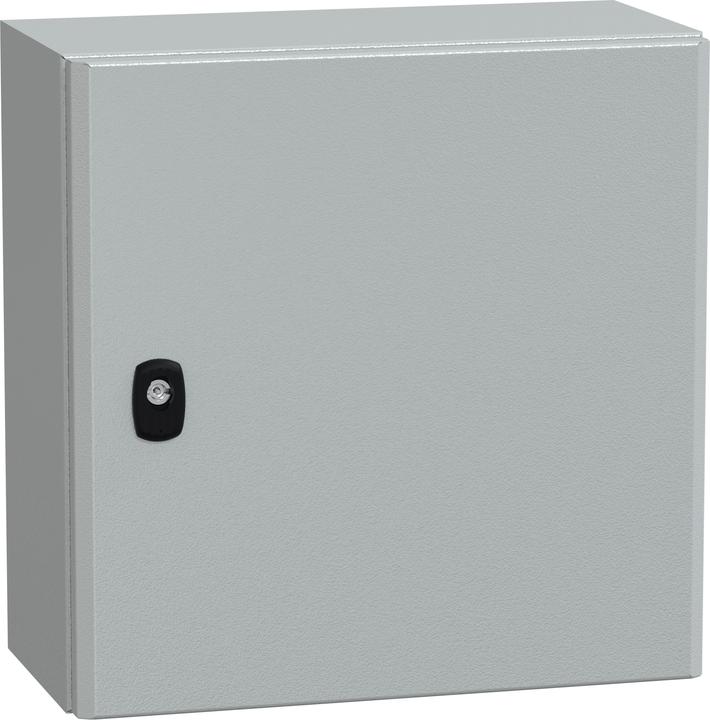

Schneider Electric Enclosure, Spacial 3D, 400x400x200mm
40 cm, 40 cmSupplied by
Elektro4000 DE
free shipping
Height Outside: 400 mm
Width Outside: 400 mm
Outer Depth: 200 mm
External Dimensions: 400 x 400 x 200 mm
Housing Material: Steel
Transparent Door: No
IP Protection Class: IP66
Chassis Plate: Yes
Door Lock Type: Double Bolt
Screen Connection Plate: Yes
Color: Gray
RAL Code: RAL 7035
Mounting Kit: Yes
Internal Mounting Type: Panel
Spacial S3D wall-mounted junction boxes with chassis plate. The Schneider meter cabinet of the S3D series for wall mounting is made from a one-piece, bent, and welded steel sheet with a double-walled, channel-shaped front profile. The Spacial S3D series includes perforated rails on the door, with a drilled diameter of 4.2 mm on a 25 mm grid: Cabinets with an external height of 400 mm have 2 vertical rails, and cabinets with an external width of 800 mm have 2 horizontal and vertical rails. Features and benefits: IP66 protection class, meaning the cabinets are dust-tight and provide protection against strong water jets and heavy seas. External mechanical impact resistance of IK10 (protected against objects weighing up to 5 kg from a drop height of 20 cm). Pass-through plate with cable gland and hole grid for maximum access. High UV resistance. Aluminum hinge pins. The flap can be removed and reversed to open left or right. The flap can be opened up to 120°. Wall brackets are mounted from the outside. Double thickness 20 mm return fold flaps for excellent strength. Polyurethane door seal. The included handle has two functions: as a key and as a tool for removing the screw covers.
Height | 40 cm |
Material group | Metal |
Width | 40 cm |
Type of workshop cabinet | Wall cabinet |
Item number | 9911052 |
Manufacturer | Schneider Electric |
Category | Workshop cabinets |
Manufacturer no. | NSYS3D4420P |
Release date | 16.10.2018 |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Galvanized steel, Steel |
Surface finish | Powder coating |
Type of workshop cabinet | Wall cabinet |
Number of doors | 1 x |
Number of keys | 1 x |
Delivery condition | Self-assembly |
Opening angle | 120° |
Model series | Spacial S3D full door with mounting plate H400xW400xD200 IP66 IK10 RAL7035. NSYS3D4420P |
Housing load capacity | 250 kg |
door type | Solid wall door |
Case material | Steel |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 20 cm |
Width | 40 cm |
Height | 40 cm |
Depth | 20 cm |
Weight | 8 kg |
Length | 42.60 cm |
Width | 41.60 cm |
Height | 24.60 cm |
Weight | 8.51 kg |
