Schneider Electric C254250S Switch disconnector ComPacT NSX250NA 4 poles

Ratings
BrandMore from Schneider Electric
Delivered between Fri, 13.6. and Thu, 19.6.
Only 3 items in stock at supplier

Product details

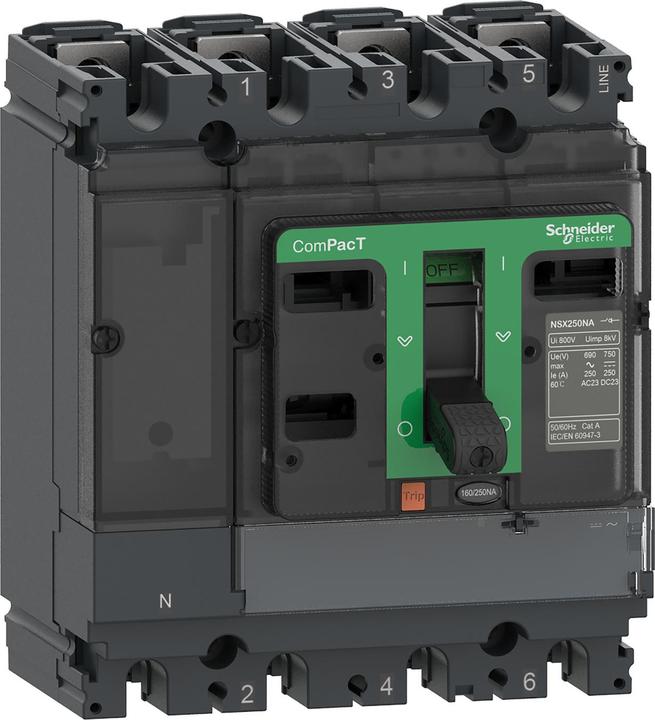

Schneider Electric Load Break Switch ComPacT C254250S

Manufacturer: Schneider Electric
Designation: Load Break Switch ComPacT NSX250NA, 4 poles
Type: C254250S
Configured as main switch: yes
Configured as maintenance/repair switch: yes
Configured as safety switch: no
Configured as emergency stop device: no
Configured as reversing switch: no
Number of switches: 1
Max. rated operational voltage Ue at AC: 690 V
Rated operational voltage: 690 V
Rated continuous current Iu: 250 A
Rated continuous current at AC-23, 400 V: 250 A
Rated continuous current at AC-21, 400 V: 250 A
Rated short-time current withstand Icw: 3.5 kA
Number of poles: 4
Number of auxiliary contacts as changeover: 5
Motor drive optional: yes
Integrated motor drive: no
Voltage release optional: yes
Device design: Built-in device fixed installation technology
Suitable for floor mounting: yes
Suitable for front mounting 4-hole: yes
Suitable for central front mounting: no
Suitable for panel installation: yes
Suitable for intermediate installation: no
Color of the operating element: black
Design of the operating element: knob
Lockable: yes
Connection type main circuit: screw connection
Protection class (IP), front side: IP30

Schneider Electric Load Break Switch ComPacT C254250S: additional details
This ComPacT NSX250NA is a complete 4-pole load break switch. It is used for controlling and isolating power distribution circuits. A preceding protection is required for this purpose. The operating current is 250 A at 415 VAC 50/60 Hz for the usage categories AC22A and AC23A. The operating voltage is 690 VAC 50/60 Hz. It is equipped with a range of optional functions and accessories that can be used with the ComPacT NSX circuit breakers. The dimensions for this 4-pole version are 140 mm x 161 mm x 86 mm. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. EAN: 3606481999306.

Key specifications

Nominal current
250 A
Nominal voltage
690 V
Number of outlets
1 x
Protection type (IP code)
IP30
Item number
31972293

General information

Manufacturer
Schneider Electric
Category
Mobile power distributors
Manufacturer no.
C254250S
Release date
24.10.2022

Colour

Colour
Black
Exact colour description
Black

Mobile power distributor features

Nominal current
250 A
Nominal voltage
690 V
Number of outlets
1 x
Number of poles
4 x
Contact Configuration
1 normally open or normally closed contact
Actuator Type
Gag
input voltage
690 V
number of poles
4
Protection type (IP code)
IP30

Origin

Country of origin
Poland

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
4 poles, ComPacT NSX250NA switch-disconnector

Product dimensions

Width
140 mm
Length
161 mm
Height
161 mm
