Name: ATV320 1.5KW 400V 3PH COMPACT VSD
Brand: Schneider Electric
SKU: 9719528
Price: 510 CHF
Availability: InStock

productDetailPageQuery

Schneider Electric

Frequency inverter ATV320, compact. Dimensions 105 x 188 x 158 mm (with EMC plate), power 1.5 kW. Supply voltage 3-phase 380-500 V, 50/60 Hz, with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Inverters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Inverters come with an EMC plate for customer-side installation.

Integrated safety technology with 5 functions: safe torque off (STO), safe stop (SS1), safe reduced speed (SLS), safe door interlock (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability. U/F control, U/F2 control, energy-saving function. Max. frequency 599 Hz. Simplest commissioning, intuitive operation, and plug & drive, preconfigured for the most common applications. Options for loading, editing, and backing up the inverter configurations with tools such as the commissioning software SoMove, decentralized terminals, and configuration tools -Simple-Loader- and -Multi-Loader-. Integrated Class A radio interference filter, deactivatable. Suitable for operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 can be switched as digital inputs. Integrated brake module enables 4-quadrant operation without retrofitting.

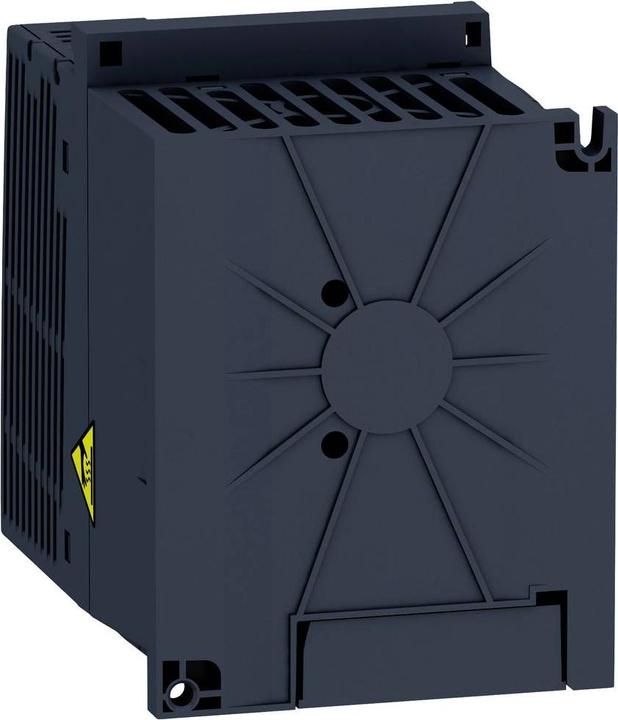

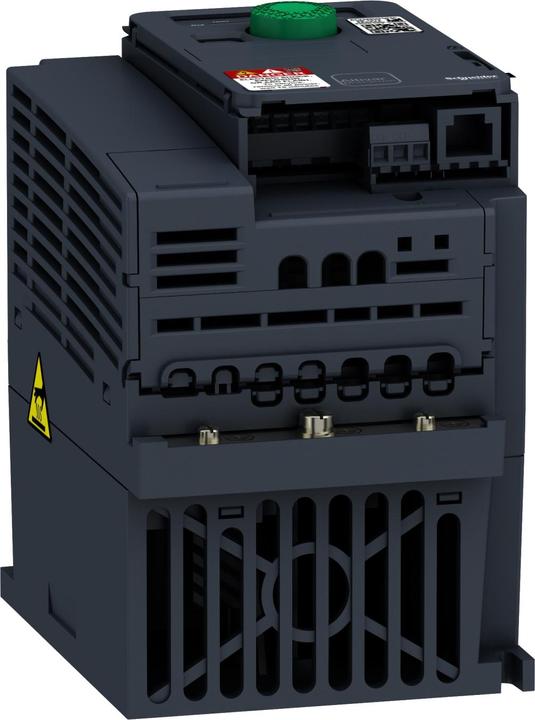

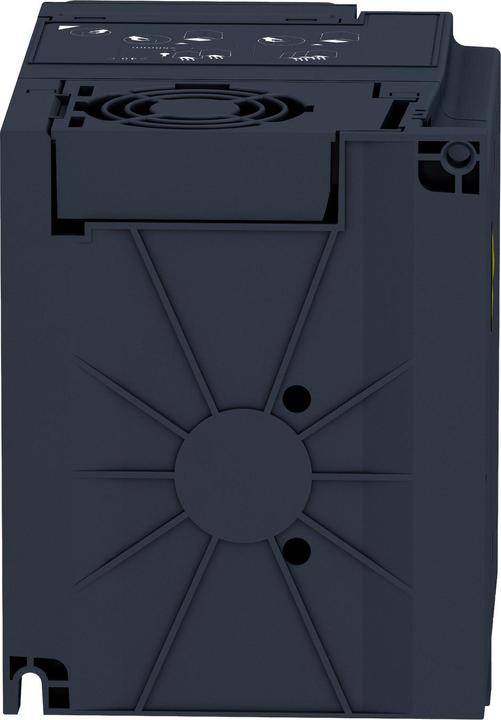

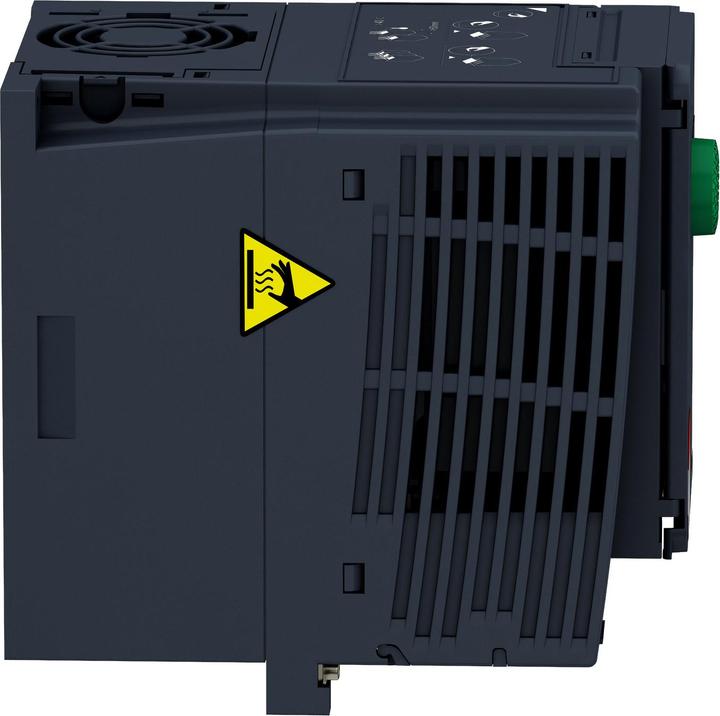

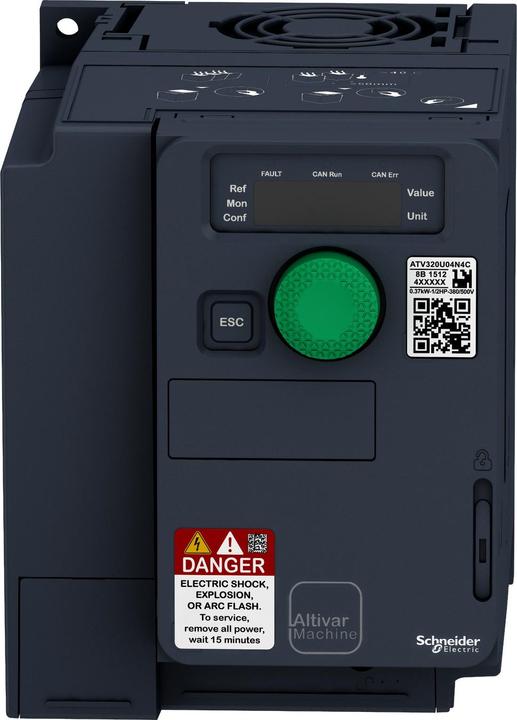

Actual product image Schneider Electric ATV320 1.5KW 400V 3PH COMPACT VSD

Key specifications

Mains voltage

Output phase number

Output frequency

Power

Supports protocol

ATV320 1.5KW 400V 3PH COMPACT VSD

Frequency converters

30-day right of return

General information

Colour

Frequency inverter properties

Origin

Product standards

Voluntary climate contribution

Scope of delivery

Product dimensions

Package dimensions

Performance
