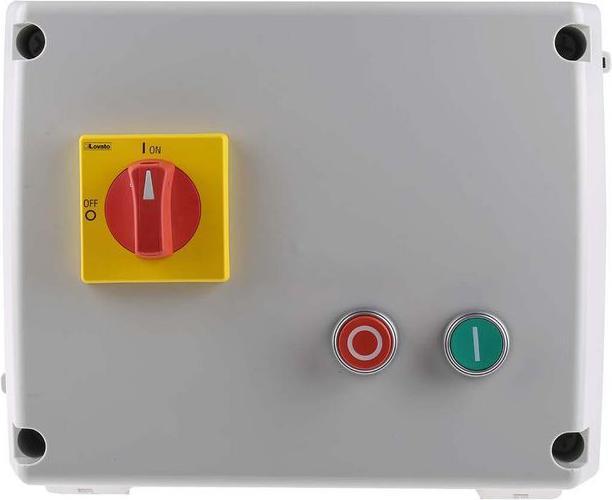

RS PRO Star Delta starter 15kW 400V Coil + Isol

Power = 15 kW
Motor starter type = Star/Delta
Operating voltage = 400 Vac
Protection class = IP65
Rated current = 13 → 18 A
Phase = 3
Number of poles = 3P
Additional features = Disconnect switch included
Total length = 220 mm
Enclosure = Yes
Total width = 280 mm
Total depth = 170 mm
Complied standards = IEC/EN 60947-1, IEC/EN 60947-4-1, RoHS compliant

Each starter is delivered without overload protection. A suitable overload protection from the RF38 series must be selected. This should typically be designed for 58% of the motor's rated full load current. Encapsulated star-delta motor starters. A series of encapsulated star-delta motor starters that combine high performance with low cost. The series includes options with and without isolator and supports motors from 11 kW to 30 kW. The molded plastic enclosure provides protection against ingress of liquids and solids according to IP65. Complies with the standards IEC/EN 60947-1 and IEC/EN 60947-4-1. Operating temperature range: -25 °C → +60 °C. Start-up time up to 12 s and a maximum of 30 operations per hour.
