RS PRO Micro pump, alloy body, Gas, Liquid, 3V

Pump type: Diaphragm
Drive type: Electric
Maximum flow rate: 380 ml/min
Maximum working pressure: 11 psi
IP protection: IP50
Series: D250
Maximum fluid temperature: +100°C
Housing material: Aluminum
Supply voltage: 1.5 to 5 V
Power consumption: 0.48 W
Materials used: Anodized aluminum, nitrile, silicone, stainless steel
Output connection: 2.4 mm

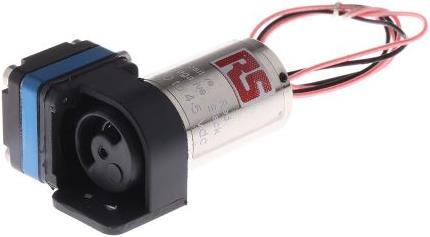

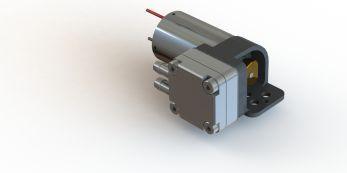

Micromembrane gas and liquid pump, RS Pro. RS Pro's D200 series pumps are manufactured from glass reinforced nylon or aluminum alloy with stainless steel tubing connections. They include nitrile/silicone diaphragm and valves as standard. The pump uses push-fit connectors for 2.4 mm flexible tubing.

Features and benefits:

• High efficiency
• Variable flow rate and low power consumption
• Small size: only 42 x 27 x 17 mm
• Usable with solar power, AC adapter, or batteries
• Resistant to many chemicals
• Lightweight: 25 g to 34 g
• Head adjusts to 4 positions for easy connection of inlet and outlet tubing

Application information: Typical applications include:

• Medical equipment
• Analytical systems
• Gas detection and monitoring
• Refrigeration systems
• Precision flow
• Battery and solar battery powered systems.
