Rs Pro Insulated copper wire,21awg 120m

Conductor cross section: 0.4 mm²
AWG: 21 AWG
Stranded wire: 1/0.71 mm
Insulation material: PUR
Outer diameter: 0.78 mm
Length: 120 m
Wire type: EN 60317/20
Operating temperature max: +155°C
Cable type: Single core

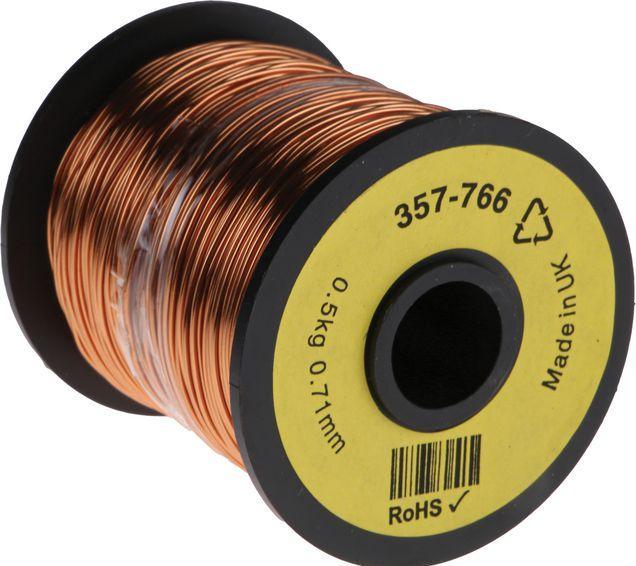

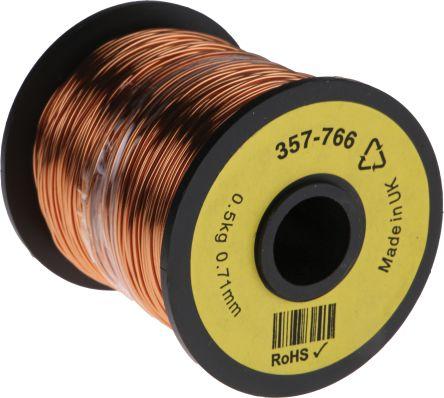

Insulated copper cable from RS Pro is a series of insulated copper wire supplied on convenient plastic spools. The single core copper wire has a thin layer of enamel that acts as excellent insulation, preventing short circuits and providing good chemical and thermal resistance. Insulated copper wire is especially useful for making transformer windings, inductors, motors, relay coils, and other applications where tight coil windings are required. RS Pro copper wire is available in a variety of diameters and AWG (American conductor size).

Features and benefits:

• Excellent insulating properties
• Copper exhibits good chemical and corrosion protection
• Self-flowing, polyurethane-coated
• Max continuous temperature: +155 °C

Applications:
Insulated single copper strands are used in a wide variety of applications in electronics manufacturing. The most common areas or applications include:

• Manufacturing of motor windings
• Transformer windings
• Inductors for electronics
• Relay coils
• Speaker coils
• Potentiometers.
