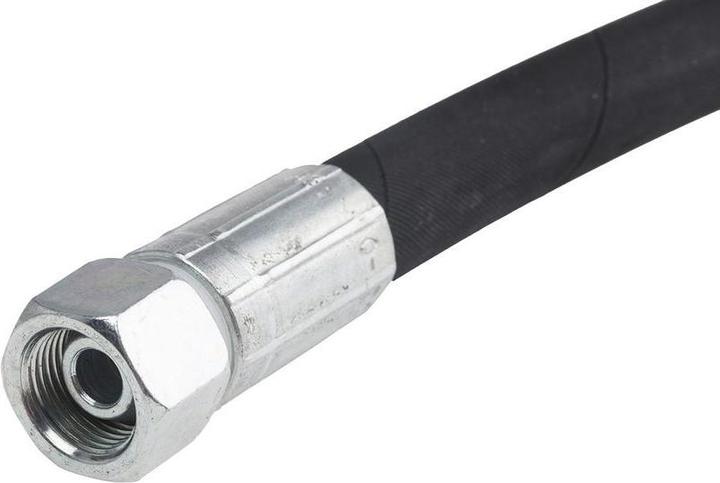

Rs Pro Hydraulic Hose, 1956 mm L x 1/2in ID

Total length: 1956 mm
Inner diameter: 1/2 inch
Plug A: G1/2 female straight
Connector B: G1/2 female straight
Inner tube material: Synthetic rubber
Reinforcement material: Steel
Cover material: Synthetic rubber
Max. working pressure: 275 bar
Plug B - Standard thread: G
Connector A - Angle: Straight
Plug B - Thread size: 1/2 inch
Plug A - Standard thread: G
Plug B - Gender: Female
Operating temperature max: +100°C

Flexible hose assemblies can transmit fluids at high pressure. Special attention should be paid to application, material, and technical data. These assemblies are not suitable for use with high pressure hydraulic cylinders and pumps, which have an operating pressure of 700 bar. They are outside the terms of our BS 5750 (Part 2) Specialist Dealer for Rated Capability Level B Registration. Pin jet cover for air and gas applications above 250 psi (17 bar). Straight hydraulic hose assembly. High quality flexible hydraulic hose with crimped termination fittings. Each assembly features a one-piece end fitting, eliminating a mismatched insert and ferrule, and matching hoses. Hoses are made of synthetic rubber with a synthetic rubber outer cover and steel wire reinforcement with high tensile strength. Fittings are made of galvanized mild steel. Applications include medium pressure maintenance with petroleum-based hydraulic fluids, mineral oils, lubricating oils, water-glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude and fuel oil, air, and water.
