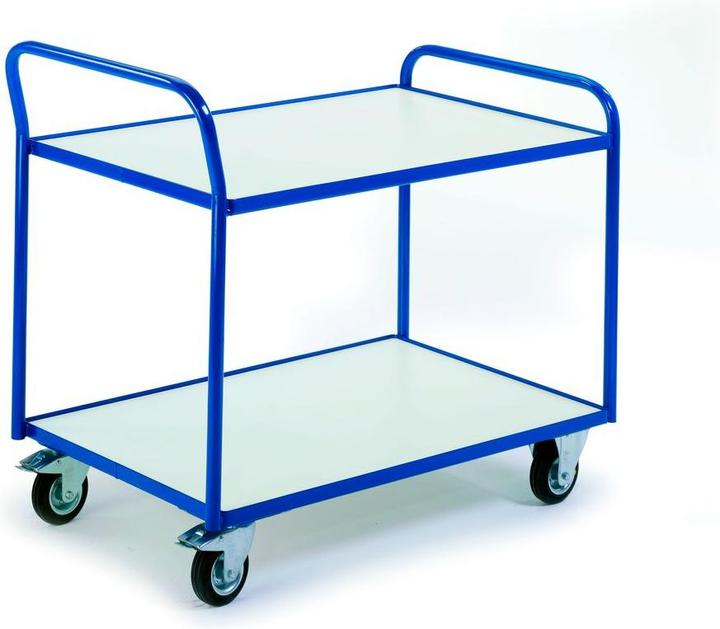

Rollcart ESD table trolley with 2 shelves

ESD transport carts counteract electrostatic charges and protect electronic components. The housing is galvanized and features an electrically conductive powder coating in gentian blue (RAL 5010). The swivel casters are equipped with electrically conductive solid rubber tires and roller bearings. A brake on the swivel casters complies with the European standard EN 1757-3. The fixed wheels (non-swiveling) also have electrically conductive solid rubber tires and roller bearings. The loading surface is made of electrically conductive particle board in white.

Static electricity occurs, for example, when walking on a carpet, where a person can become charged with about 30,000 volts. Electrical discharges can cause significant damage to microelectronic components or potentially trigger a fire in flammable areas. Electrostatic discharges are prevented by the conductive connection of all metal parts, the incorporation of metallic conductors such as graphite particles, and the use of electrostatically dissipative materials. These materials have a slightly increased electrical conductivity due to additives, which safely dissipates generated electrical charges while preventing high-current discharges.

Loading surface: 990 x 590 mm
External dimensions: 1110 x 600 mm
Shelf height: 190/730 mm
Push handle height: 930 mm
Load capacity: 250 kg
Wheel Ø: 125 mm.
