PULS Power supply unit for DIN rail, 89%, 24V, 3A, 72W, adjustable

Ratings
Delivered between Mon, 9.6. and Thu, 12.6.
10 items in stock at third-party supplier
Supplied by

Product details

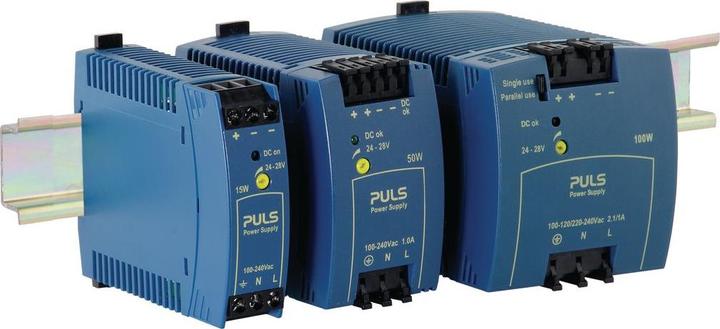

The DIN rail power supply from PULS, model MiniLine ML70.100, is a reliable system power supply designed for indoor use. With a rated power of 72 watts and an output voltage of 24 volts at a maximum output current of 3 amperes, this switch-mode power supply provides efficient and stable power for various applications. The high efficiency of 89% ensures reduced energy consumption and lower heat generation, extending the lifespan of the device. The power supply is suitable for mounting on DIN rails and meets the IP20 protection class, safeguarding it against contact and solid foreign objects. The operating temperature ranges from -10 °C to 70 °C, allowing for flexible use in different environments. The quick and easy connection option via quick-clamp terminals simplifies installation and replacement.

  • Adjustable output voltage for flexible applications
  • High efficiency of 89% to reduce energy consumption
  • Operating temperature range of -10 °C to 70 °C
  • Long lifespan with an MTBF of 600,000 hours
  • Easy mounting on DIN rails with quick-clamp terminals.

Key specifications

Nominal current
3 A
Nominal voltage
240 V
Number of outlets
1 x
Protection type (IP code)
IP20
Item number
33655021

General information

Manufacturer
PULS
Category
Mobile power distributors
Manufacturer no.
ML70.100
Release date
17.5.2023

Mobile power distributor features

Nominal current
3 A
Nominal voltage
240 V
Number of outlets
1 x
Area of use
Inside
mounting type
DIN rail mounting
Actuator Type
adjustable
Power
0.07 kW
input voltage
85 - 264 V
output voltage
24V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
142 mm
Length
150 mm
Height
62 mm
