Nominal voltage2
Product details

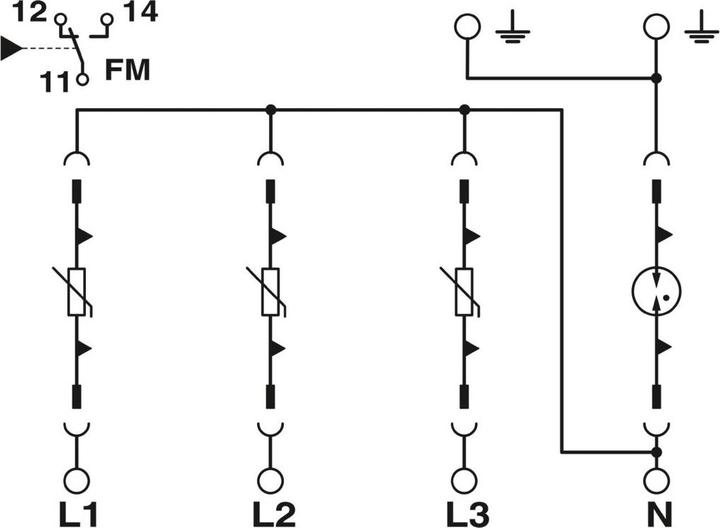

The Phoenix Contact surge arrester 1466214 VAL-SPP-T2-275-3+1-UT-R offers effective protection for 3-phase power supply networks with separate neutral and ground conductors. This pluggable surge arrester complies with test class Type 2 and is designed for use in 5-wire systems (L1, L2, L3, N, PE). It is suitable for both analog and digital telecommunications interfaces and supports high data transmission rates, including VDSL and G.fast. Installation is straightforward, as the device can be mounted on the wall or on a mounting rail. An integrated overload protection ensures safe operation in overload situations, while the status indicator allows for precise function monitoring.
- Easy installation through screw fastening and snapping onto the mounting rail
- Precise function monitoring thanks to the integrated status indicator
- Compatible with VDSL, Vectoring VDSL, Super-Vectoring VDSL, and G.fast
- Integrated overload protection with disconnection mechanism and electronic current limiter
- High rated surge current capacity of 20 kA.
Surge protection type | Surge arrester |
Number of conductors | 4x |
Test class | Type 2 |
Item number | 47230308 |
Manufacturer | Phoenix Contact |
Category | Surge protection |
Manufacturer No. | 1466214 |
Release date | 15.7.2024 |
Colour | Grey |
Exact colour description | Grey, Light grey |
Surge protection type | Surge arrester |
Number of conductors | 4x |
Lightning impulse current | 20 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 275 V |
Mounting type | Screw fastening |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂ emissions | 24.84 kg |
Climate contribution | CHF 0.59 |

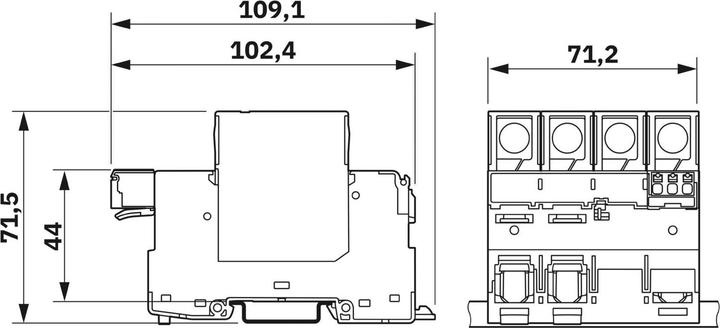

Length | 0.07 m |
Width | 0.07 m |
Height | 0.11 m |
Weight | 474 g |
Specifications may include unverified machine translations.
