Product details
Actuator type = Upper plunger
Actuator included = Yes
Contact configuration = Normally closed/ normally open
Switching function = Snap action
Protection class = IP67
Connection type = Screw mounting
Number of cable inputs = 1
Number of contacts = 2
Size of cable entries = M20
Number and position of contacts = DPST
Series = D4N
Length = 59mm

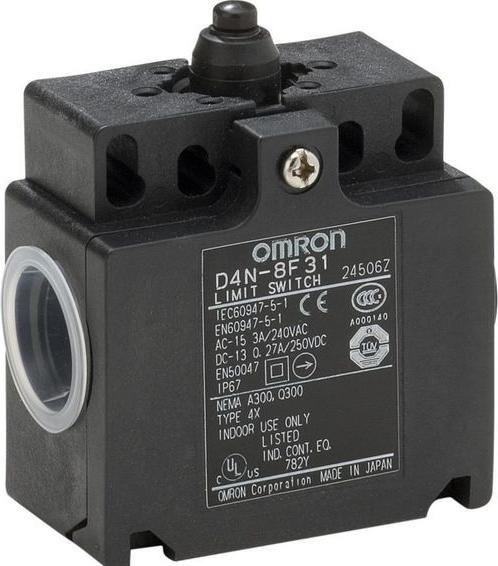

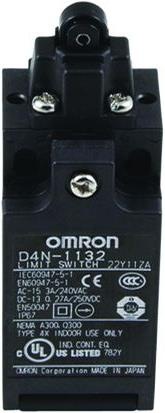

TÜV EN60947-5-1 (approved direct opening), UL508 CSA C22.2 No. 14, CCC (CQC) GB14048.5, EN50047, EN1088 (slow action models only). D4N series safety limit switch, PG13.5. Replacement for Omron D4D-N series limit switch. Functionality is unchanged, but housing length has increased by 4 mm. The change in housing length does not affect the position of the actuator. NC contact for safety circuit and NO contact for control circuit (1-pole changeover switch) Contact rating: 10 A continuous Head can be placed in 4 positions as desired Protection class IP67 Cable entry PG13.5 Ambient operating temperature: -30 to +70°C Complies with Machinery Directive and Low Voltage Directive.
