Niedax Cover bumper

Niedax Cover Joint Strip Y-Shape DSLY 3.0/300 S

Manufacturer: Niedax
Description: Cover Joint Strip Y-Shape 25x295mm
Type: DSLY 3.0/300 S
Top Width: 295 mm
Material Thickness: 0.5 mm
Suitable for Cable Trays: yes
Suitable for Grid Trays: no
Suitable for Cable Ladders: no
Length: 25 mm
Mounting Type: snap-on
Suitable for Function Maintenance: yes
Material: Steel
Stainless Steel, Pickled: no
Material Quality: other
Surface Protection: hot-dip galvanized

Niedax Cover Joint Strip Y-Shape DSLY 3.0/300 S: additional details
Cover joint strip, Y-shaped, designed to cover right-angle joint points as well as horizontal angled cut edges on cable tray covers with fully raised ribbing and pre-formed knock-out openings of the walkable cable tray system. Installation is done via the insertion pocket of the cover joint strip, which is snapped onto the cover. The subsequent cover is pushed up to the insertion pocket below the bend. Usable for: Covers RDRS ...-2.0 S as well as corresponding fitting covers.

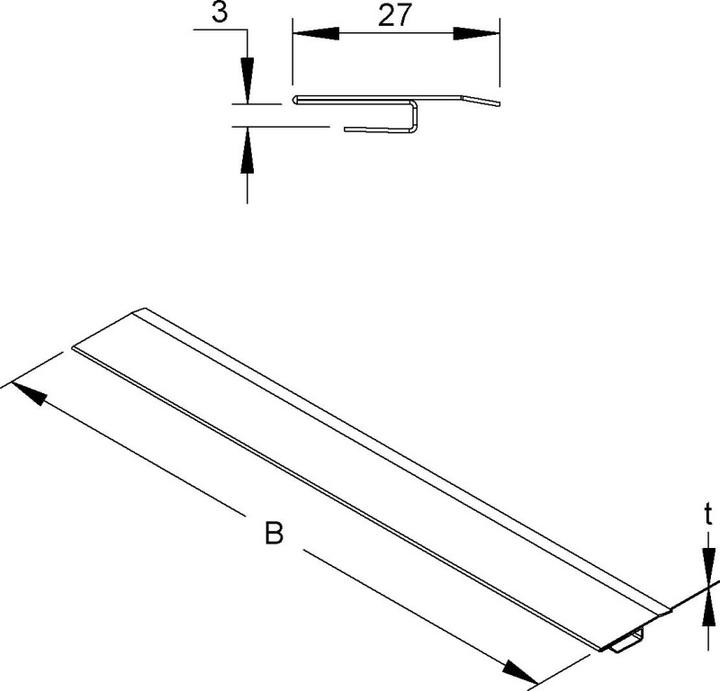

Dimensions (approx. measurements):
Width: 295 mm for cover width: 300 mm
Material Thickness t: 0.5 mm
Y-Insertion Height: 3 mm
Cover Joint Point Overlap: 27 mm
Material: Steel, hot-dip galvanized
DIN EN 10346
EAN: 4013339133635.
