Niedax Built-in appliance socket

Niedax Device Installation Socket GES 3 R R

Manufacturer: Niedax
Description: Triple device installation socket, white
Type: GES 3 R R
Number of units: 3
Socket mounting type: Front
Design: Closed
Device type: Other
Mounting track: Other
Installation device mounting type: Snap-in
Strain relief option: Yes
With connection space: Yes
Material: Other

Further details:
Device installation system, pre-configured, triple, horizontal, ready for connection, pre-wired, complete with adapter and cover frame, with socket insert for general power circuits, designed to snap into the cover mounting contour of the device channels. Recommended for normal usage. For special applications (e.g., schools, workshops, sports halls), we recommend using our device installation sockets GDM 50 in conjunction with an appropriate switch program. The cross-section of approximately 2880 mm² must be deducted from the usable cross-section of the device channel.

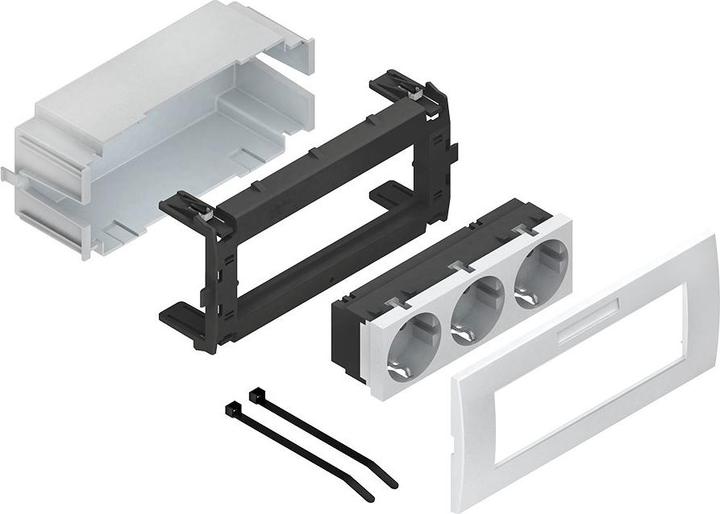

Set includes:
1 x Protection socket, triple, gray
1 x Device adapter, triple, Module 45, with 4 spring clips
1 x Socket insert, triple, horizontal, with terminal clamps for wires 1.5 - 2.5 mm², 2-pole, with touch protection
1 x Cover frame, triple, Module 45, including viewing window with label for labeling field
2 x Cable ties for strain relief
1 x Installation manual

Use for:
Device channel bases GKU, DKU
Desk channel bases PGU, PLU
Aluminum channel bases GAU, DAU
Energy columns ESDB 133, ESED 133, ESDD 133

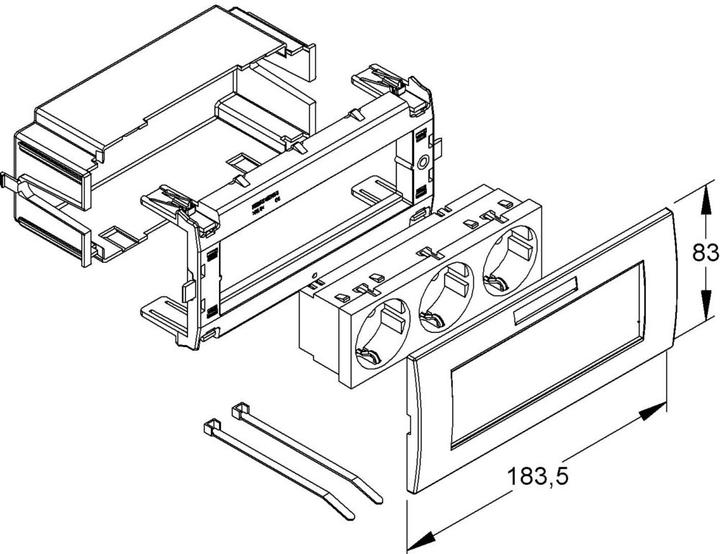

Dimensions (approx. sizes) H x W: 83 x 183.5 mm for cover opening: 78 mm
Rated voltage: 250V / 16A
Socket insert color tone: Pure white RAL 9010 (similar)
Cover color tone: Pure white RAL 9010 (similar)
EAN: 4013339057481.
