Product details

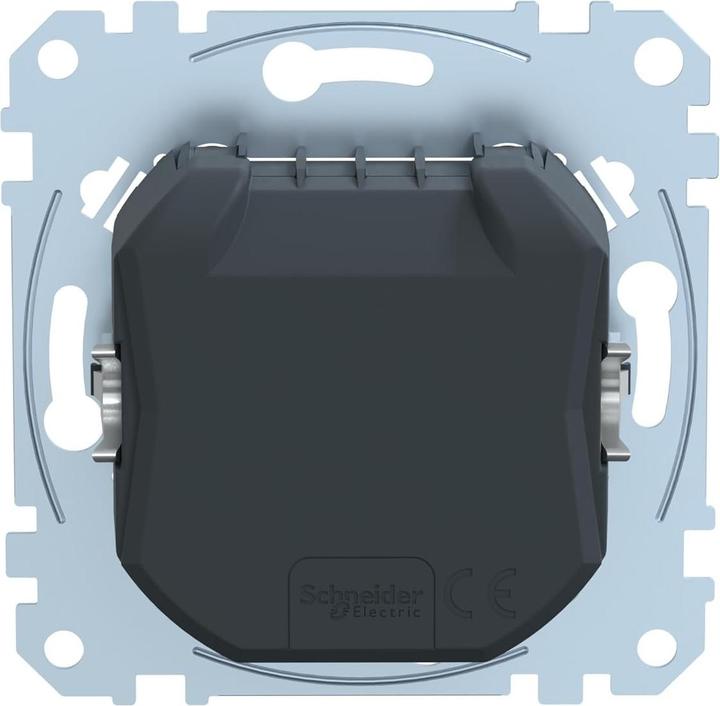

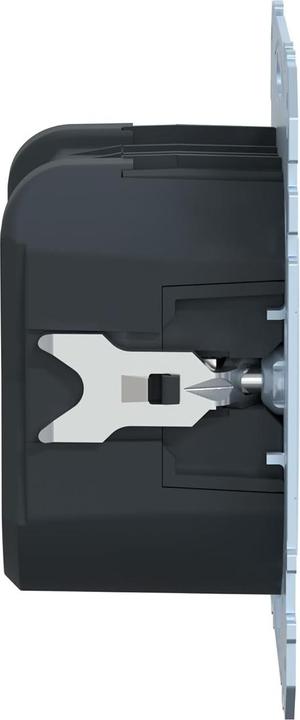

For resistive, inductive, or capacitive loads, such as incandescent lamps, dimmable wound transformers, or electronic transformers (phase cut or phase control). The universal dimmer automatically detects the connected load. Do not connect mixed loads. With claw and screw mounting. Equipped with screw terminals. Functions: Switching and dimming of two outputs. The module determines how the function is utilized. External control via two PlusLink inputs. Overload and short-circuit proof. Soft start. Memory function. Rated voltage: AC 220/230 V, 50/60 Hz. Outputs: 2. Switching power per channel: 50-200 VA. Neutral conductor: not required (2-wire system). Connection cross-section: max. 2x2.5 mm².
Light switch + socket Type | Dimmer |
Application range | Indoor |
Number of cans | 2 x |
Number of switches | 2 x |
Exact colour description | Other |
Mounting type | Flush-mounted |
Item number | 21788781 |
Manufacturer | Merten |
Category | Light switches + Plug sockets |
Manufacturer no. | MEG5172-0000 |
Release date | 17.8.2022 |
External links |
Colour | Silver |
Exact colour description | Other |
Material group | Metal |
Material | Metal/plastic |
Light switch + socket Type | Dimmer |
Mounting type | Flush-mounted |
Mounting type | Claw fastening |
Application range | Indoor |
Number of switches | 2 x |
Additional properties | Halogen-free, Impact resistance, Motion sensor, Switch |
Protection type (IP code) | IP20 |
Nominal voltage | 230 V |
Area of use | Inside |
Number of cans | 2 x |
connector type | Screw terminals |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Control type | Radio control |
Radio frequency | 60 Hz |
Country of origin | Latvia |
CO₂-Emission | |
Climate contribution |
Length | 2.80 cm |
Width | 7.30 cm |
Height | 7.30 cm |
Stack depth | 46 mm |
